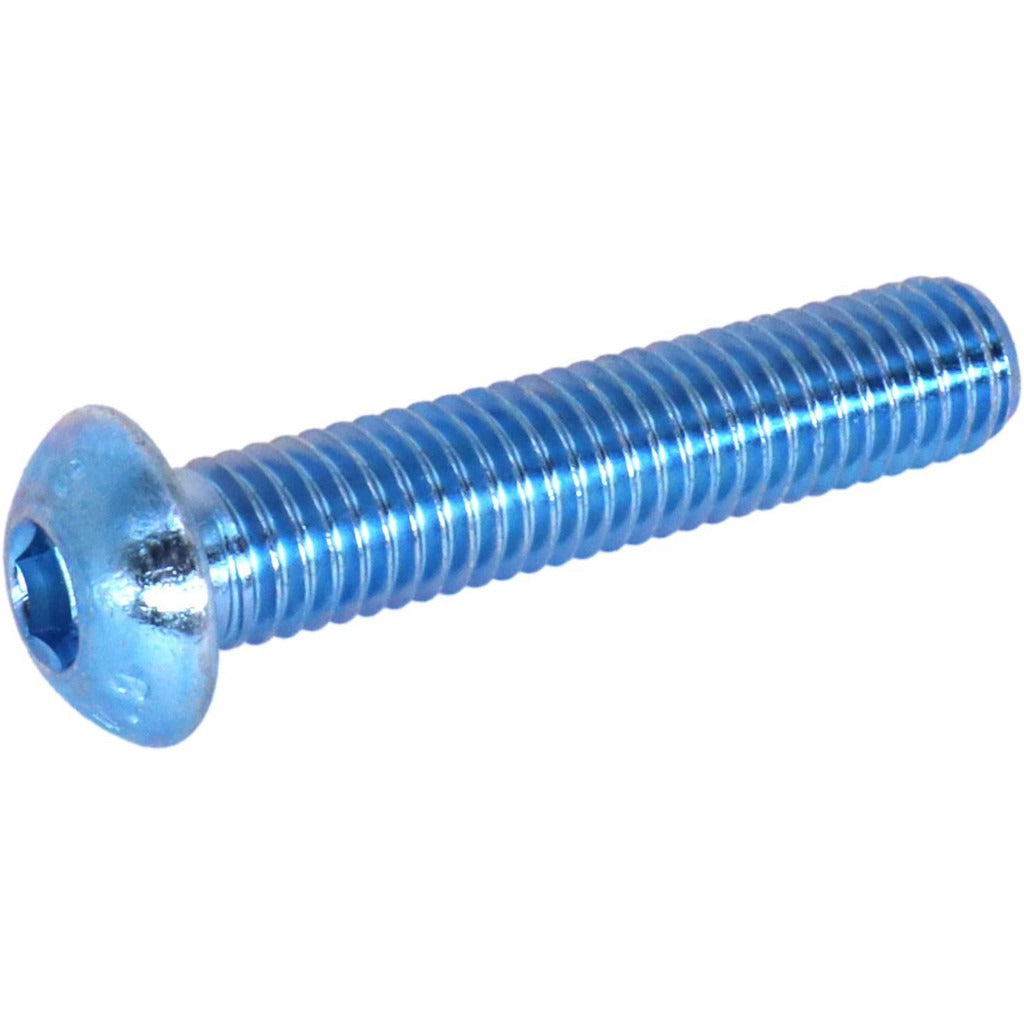

Value Collection MKBC08C016MBPKG M8x1.25 Button Cap Screw 25pk

Product Description

The VALUE COLLECTION MKBC08C016MBPKG is a button socket cap screw designed for applications requiring a low-profile fastener with a high-strength alloy steel construction. Featuring an M8x1.25 metric thread and a 16 mm length under head, this screw is fully threaded and driven with a 5 mm hex key. The button head profile provides a wider bearing surface and a rounded top that sits flush-friendly in assemblies where clearance is limited. Built to ISO 7380 standards and rated to material grade 10.9, it delivers dependable clamp load in mechanical and structural assemblies. Installed by maintenance technicians, millwrights, and field service professionals across a range of industries.

This screw is suited for machine frames, equipment panels, jigs, fixtures, and general mechanical assemblies where a low-profile fastener is preferred over a standard socket head cap screw. The zinc blue trivalent chromate finish provides corrosion resistance in indoor and light-duty outdoor environments. The package contains 25 screws, making it practical for single-job use or bench-stock replenishment. The RoHS and REACH compliant designation makes this fastener suitable for applications with material content restrictions.

Key Features

• M8x1.25 metric thread, fully threaded shank conforms to ISO 7380 fastener standard
• Grade 10.9 alloy steel construction for high tensile and proof load requirements
• 5 mm hex drive button head profile reduces protrusion in clearance-sensitive assemblies
• Zinc blue trivalent chromate finish provides corrosion resistance and RoHS/REACH compliance
• 14 mm head diameter distributes clamp load across a wider bearing area
• Packaged in quantities of 25 for bench stock or single-task use

Compatibility

Designed as a standard ISO 7380 metric button socket cap screw compatible with M8x1.25 threaded holes in mechanical assemblies, equipment frames, and fabricated components requiring a low-profile hex-drive fastener.

Installation Notes

Install with a 5 mm hex key or hex bit driver; ensure the mating threaded hole or nut meets grade and thread standard requirements before torquing. Inspect threads for contamination or damage prior to installation. Do not mix metric and inch fasteners in the same assembly. Follow applicable equipment manufacturer torque specifications for grade 10.9 M8 fasteners when available.
