Value Collection MHWI0-600250US-100B 6-32 X 1/4 in Screw

Product Description

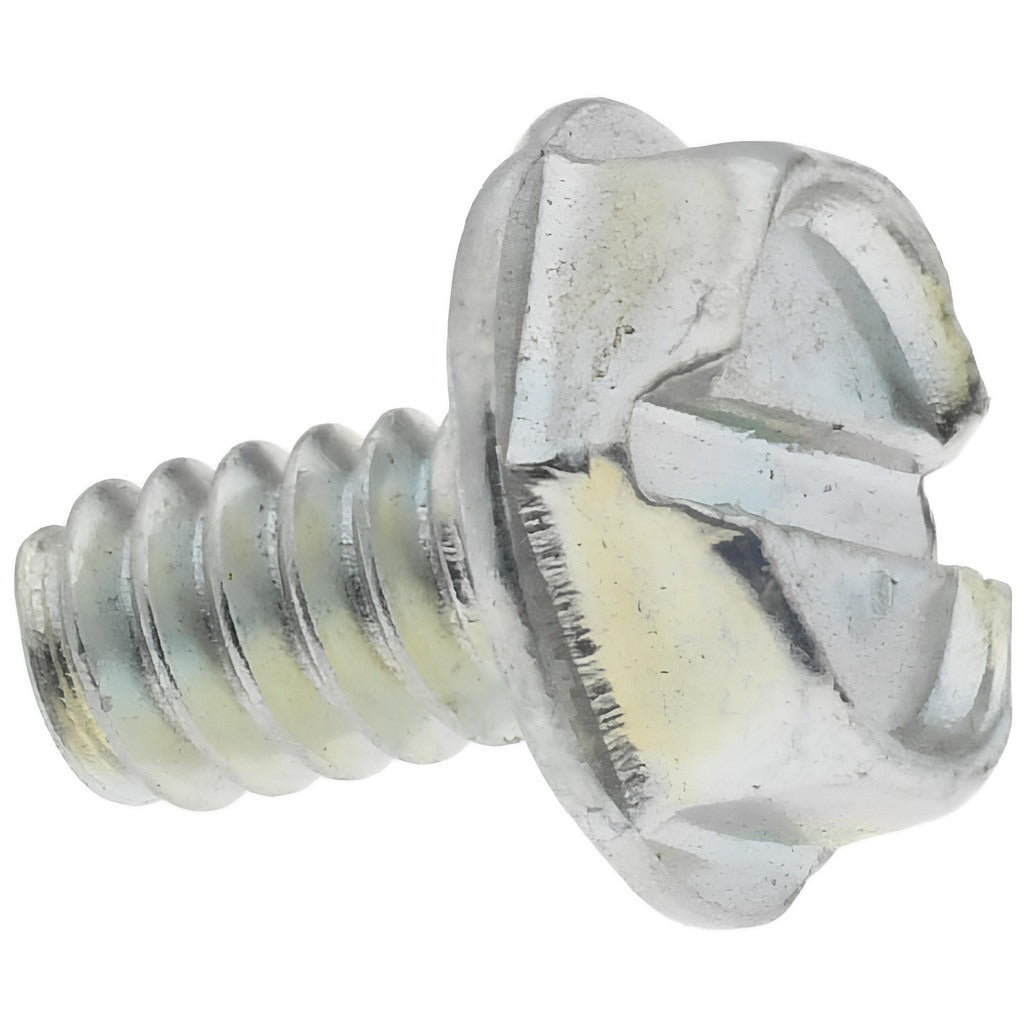

The VALUE COLLECTION MHWI0-600250US-100B is a 6-32 x 1/4-inch machine screw with a hex washer head and slotted drive, manufactured from zinc-plated steel to Grade J82 per ASME B18.6.3 and SAE J82. The hex washer head combines a standard hex profile with an integrated washer-style bearing surface, distributing clamping load without a separate washer. The slotted drive accepts a standard flat-blade screwdriver. These fasteners are sold in a minimum quantity of 100 and are measured by overall length at 1/4 inch. They are used across HVAC, electrical, and light mechanical assembly applications where a corrosion-resistant steel machine screw is required.

These screws are suited to general trade and light industrial assembly tasks where 6-32 threaded holes or nuts are specified. Typical applications include securing electrical enclosure panels, junction box covers, control board brackets, and sheet metal sub-assemblies. The zinc plating provides basic corrosion resistance appropriate for indoor and protected environments. The package quantity of 1 pack covers a minimum order of 100 pieces, making them practical for service van stock or bench inventory.

Key Features

• 6-32 thread size, 1/4-inch overall length in the inch measurement system
• Hex washer head provides a broad bearing surface without a separate washer
• Slotted drive for use with standard flat-blade screwdrivers
• Steel construction, Grade J82, zinc-plated for corrosion resistance
• Meets ASME B18.6.3 and SAE J82 dimensional and material standards
• Sold in packs of 100 pieces minimum order quantity

Compatibility

Designed as a standard 6-32 machine screw replacement or new-installation fastener for any application calling out a 6-32 x 1/4-inch hex washer head slotted screw per ASME B18.6.3.

Installation Notes

Installation requires a flat-blade screwdriver or hex driver sized to the hex washer head. De-energize all electrical panels and enclosures before installing or removing fasteners in live equipment. Verify that mating threads are 6-32 tapped holes or threaded inserts before driving. Do not overtighten; the hex washer head bearing surface is designed for hand-tool torque appropriate to the 6-32 thread class.
