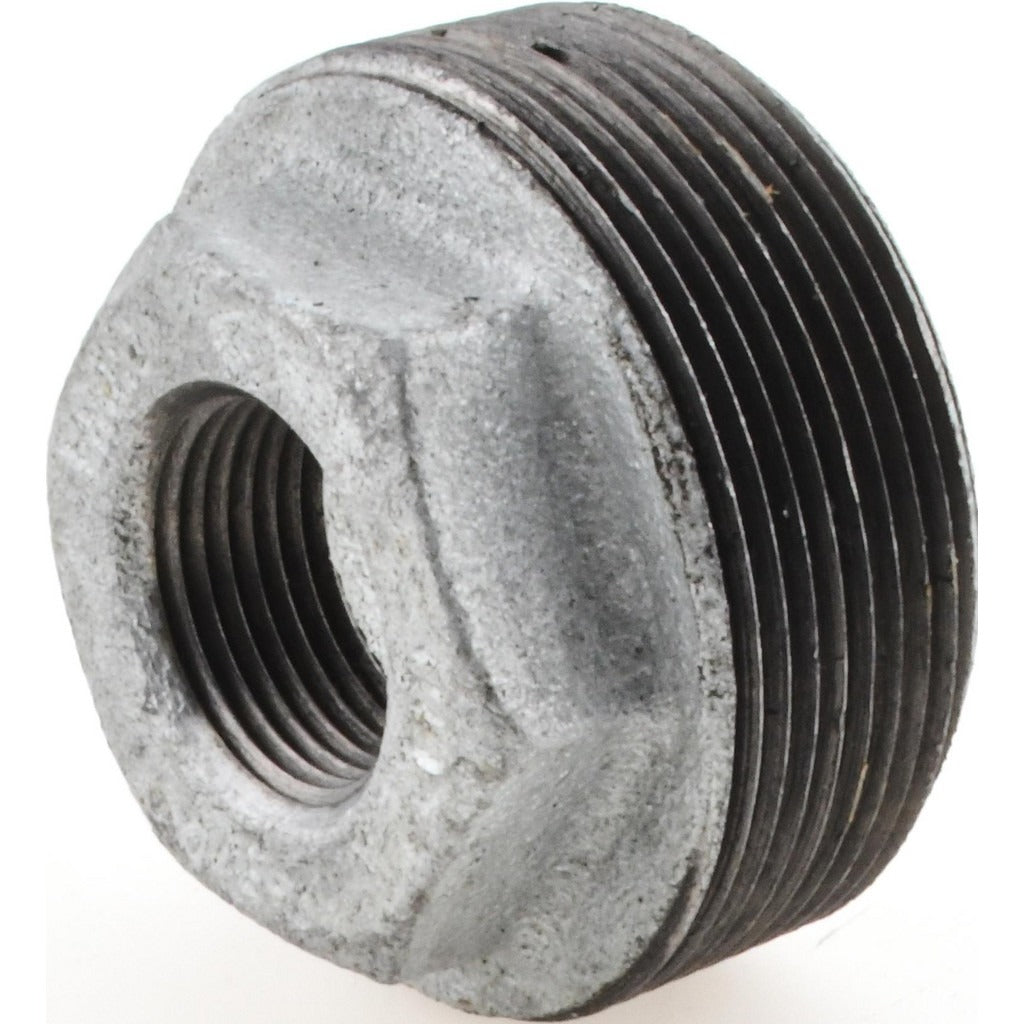

Value Collection MDG241N 50X20-2 Malleable Iron Pipe Bushing

Product Description

The VALUE COLLECTION MDG241N 50X20-2 is a malleable iron pipe bushing designed to reduce a 2-inch female threaded connection down to a 3/4-inch male threaded connection. Manufactured to ANSI/ASME B1.20.1 thread standards, this Class 150 fitting handles up to 300 psi in liquid and gas service and up to 150 psi in steam service. Malleable iron construction provides the ductility and impact resistance required in industrial and commercial piping systems. Plumbers, pipefitters, and mechanical contractors use this bushing when transitioning between pipe sizes in threaded installations.

This reducing bushing is suited for residential and commercial plumbing, HVAC hydronic systems, compressed air lines, and general industrial piping where a threaded reduction from 2 inches to 3/4 inch is needed. The NPT-compatible threading conforms to ANSI/ASME B1.20.1, making it a standard drop-in component for most threaded pipe assemblies operating within the rated pressure limits for liquid, gas, or low-pressure steam service.

Key Features

• Malleable iron construction for impact resistance and durability in industrial service
• Threaded end connections conforming to ANSI/ASME B1.20.1 NPT standards
• Rated for 300 psi liquid and gas service
• Rated for 150 psi steam service
• Class 150 fitting classification
• Reduces 2-inch pipe to 3/4-inch pipe in a single fitting

Compatibility

Designed as a standard Class 150 malleable iron reducing bushing for use in threaded pipe systems conforming to ANSI/ASME B1.20.1 thread specifications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical and plumbing codes. Shut off and depressurize the system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly and tighten to a secure, leak-free engagement without over-torquing, which can crack malleable iron fittings. Verify that the operating pressure and media are within the rated limits for this Class 150 fitting before returning the system to service.
