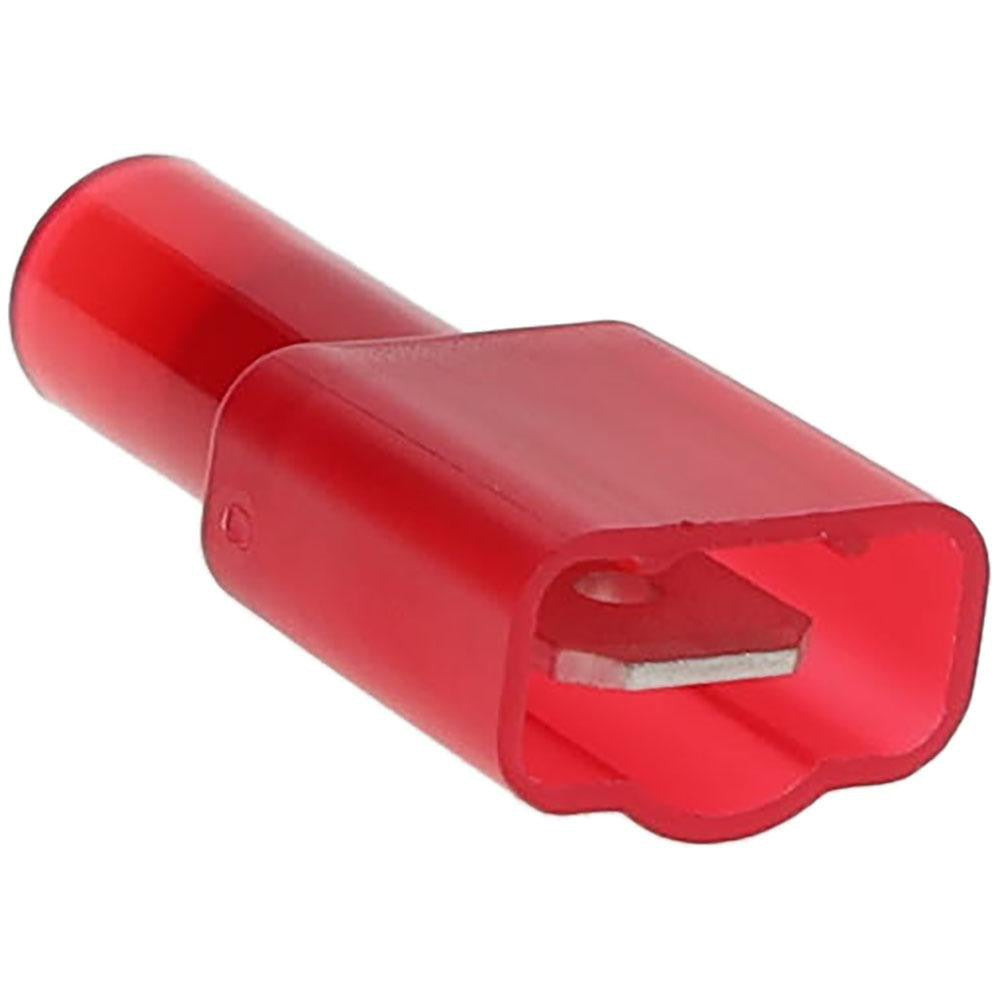

Value Collection MDFNS1-250 Male Wire Disconnect 22-16 Awg

Product Description

The VALUE COLLECTION MDFNS1-250 is a fully insulated male wire disconnect designed for crimp-style electrical terminations. The nylon insulation is red and accepts wire gauges from 22 to 16 AWG (0.50 to 1.50 sq mm), making it a standard choice for low-voltage control wiring in HVAC, appliance, and light electrical applications. The brass contact provides reliable conductivity at the 1/4 inch (6.35 mm) tab width. Electricians and HVAC technicians use this style of disconnect when a secure, removable crimp connection is needed without soldering.

This disconnect is suited for residential and light commercial wiring applications where a quick-disconnect terminal is required on a control circuit. Common install scenarios include thermostat wiring, relay and contactor control leads, fan motor leads, and appliance harness repairs. The red nylon insulation helps with visual identification of wire gauge range on the job. It is sold individually with a minimum order quantity of 50 pieces.

Key Features

• Fully insulated male disconnect with red nylon jacket for easy gauge-range identification
• Crimp connection type — no soldering required
• Accepts 22 to 16 AWG wire (0.50 to 1.50 sq mm)
• Brass contact material for reliable conductivity
• 1/4 inch (6.35 mm) tab width — industry-standard size
• RoHS compliant

Compatibility

Designed as a standard OEM-style male crimp disconnect for use with 1/4 inch female disconnect receptacles in residential and light commercial electrical and HVAC control wiring applications.

Installation Notes

Installation should be performed by a qualified electrician or HVAC technician in accordance with NEC guidelines. De-energize the circuit completely before crimping or connecting any terminal. Use a proper ratcheting crimp tool sized for the 22-16 AWG range to ensure a secure mechanical and electrical connection. Inspect the nylon insulation after crimping to confirm no cracking or deformation has occurred.
