Value Collection MDB92 32-2 300 90 Street Elbow 1-1/4 in

Product Description

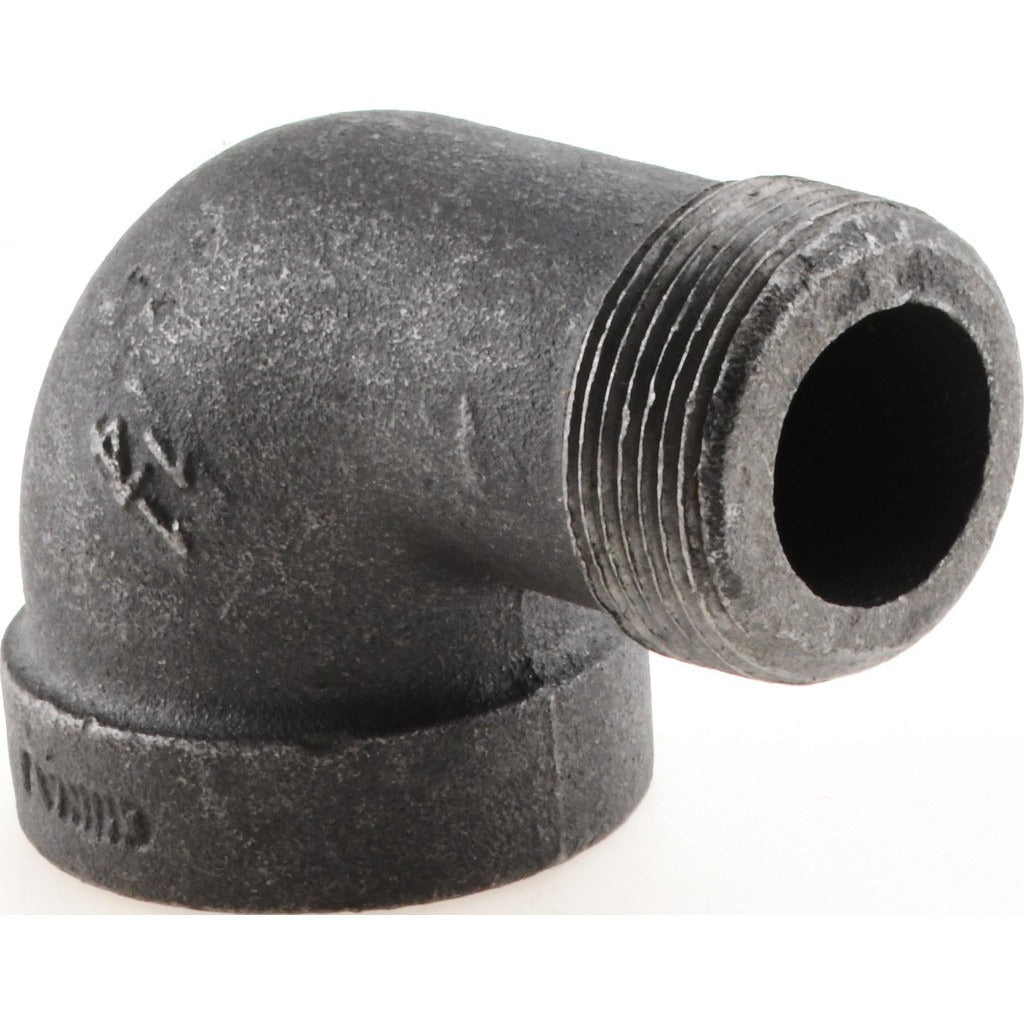

The VALUE COLLECTION MDB92 32-2 300# is a 90-degree street elbow fitting designed for threaded pipe systems handling liquid and gas service. Machined from malleable iron with a black finish, this Class 300 fitting carries a pressure rating of 1,500 psi, making it suitable for demanding industrial and commercial piping applications. The street configuration means one end is male-threaded and the other is female-threaded, allowing direct connection without a coupling. It is sized at 1-1/4 inches and conforms to Schedule 80 pipe dimensions. Licensed plumbers and pipefitters are the typical installers for this type of fitting.

This fitting is used in commercial and industrial piping systems where a 90-degree directional change is required in a compact space. The street elbow design reduces the number of fittings needed in tight configurations. It is appropriate for gas distribution lines, fire suppression piping, and liquid service systems that require a certified, high-pressure-rated malleable iron connection. The black finish is standard for gas piping applications in many jurisdictions.

Key Features

• Class 300 malleable iron construction with a 1,500 psi liquid and gas pressure rating
• 90-degree street elbow configuration with threaded end connections on both ends
• 1-1/4 inch fitting size compatible with Schedule 80 pipe
• Black finish — standard for gas line piping installations
• Multi-standard certified: ABNT, EN 10242, FM Approved, GB/T 3287, GB/T 7306.2, ISO 7/1, cULus Listed
• Sold in a package quantity of 2 per order

Compatibility

Designed as an OEM-style replacement or direct-use fitting for threaded malleable iron piping systems requiring a 90-degree street elbow at 1-1/4 inches, Schedule 80, Class 300.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes, including IFGC and IPC where applicable. Shut off and depressurize the line completely before removing or installing any threaded fitting. Apply appropriate thread sealant or PTFE tape to male threads before assembly — do not over-tighten, as malleable iron threads can crack under excessive torque. Verify pressure rating compatibility with the system before placing the fitting in service.
