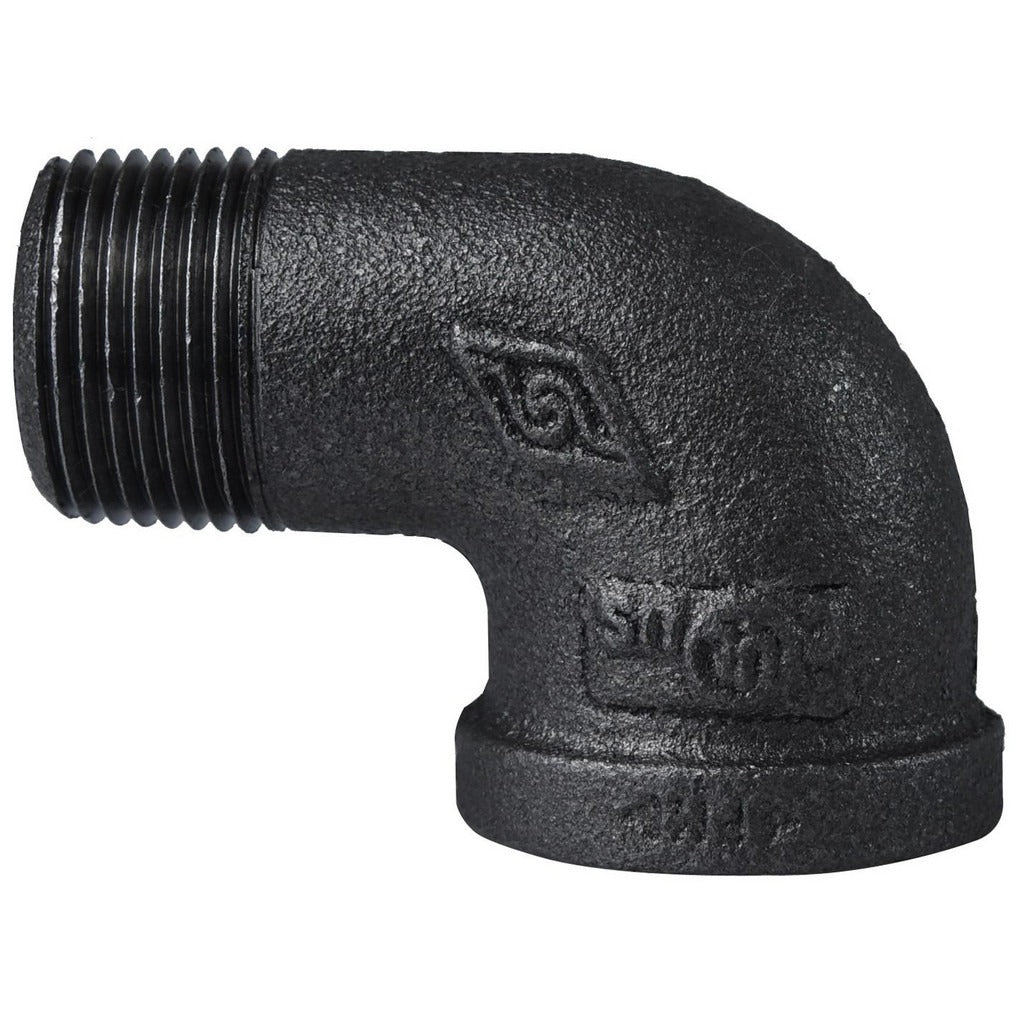

Value Collection MDB92 20-5 3/4 in 90 Street Elbow

Product Description

The VALUE COLLECTION MDB92 20-5 is a 90-degree street elbow designed for use in threaded black iron pipe systems. Manufactured from Class 150 malleable iron with a black finish, this fitting changes flow direction by 90 degrees in a compact, street-pattern configuration where one end accepts a male-threaded connection and the other accepts a female-threaded connection. Rated at 150 psi, it is suited for gas distribution, plumbing, and general industrial piping applications. This fitting is sold in a package quantity of 5 and is installed by licensed plumbers and pipefitters working on low-pressure pipe assemblies.

This street elbow is a standard choice for residential and light commercial gas and plumbing piping systems where a direction change is required without adding a separate nipple between fittings. The street configuration saves space in tight installations. The 3/4-inch size fits common branch and main-line pipe sizes found in gas supply, compressed air, and water distribution systems. Installation requires standard pipe wrenches and appropriate thread sealant or PTFE tape per applicable code.

Key Features

• 90-degree street elbow configuration eliminates the need for an additional nipple at direction changes
• Class 150 malleable iron construction rated to 150 psi
• Black finish suitable for gas and general-purpose piping applications
• Threaded end connections for standard NPT pipe assembly
• Meets multiple international standards including FM Approved and cULus Listed
• Sold in a package of 5 units with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4-inch threaded black malleable iron pipe systems operating at Class 150 pressure ratings.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters working on threaded pipe systems. Shut off all gas or fluid supply and relieve system pressure before disassembling or installing any threaded fitting. Apply thread sealant or PTFE tape to male threads per the applicable code, referencing IFGC for gas systems or IPC for plumbing systems. Do not over-tighten; use pipe wrenches with appropriate leverage for the fitting size.
