Value Collection MDB92 15-5 90 Street Elbow 1/2 in

Product Description

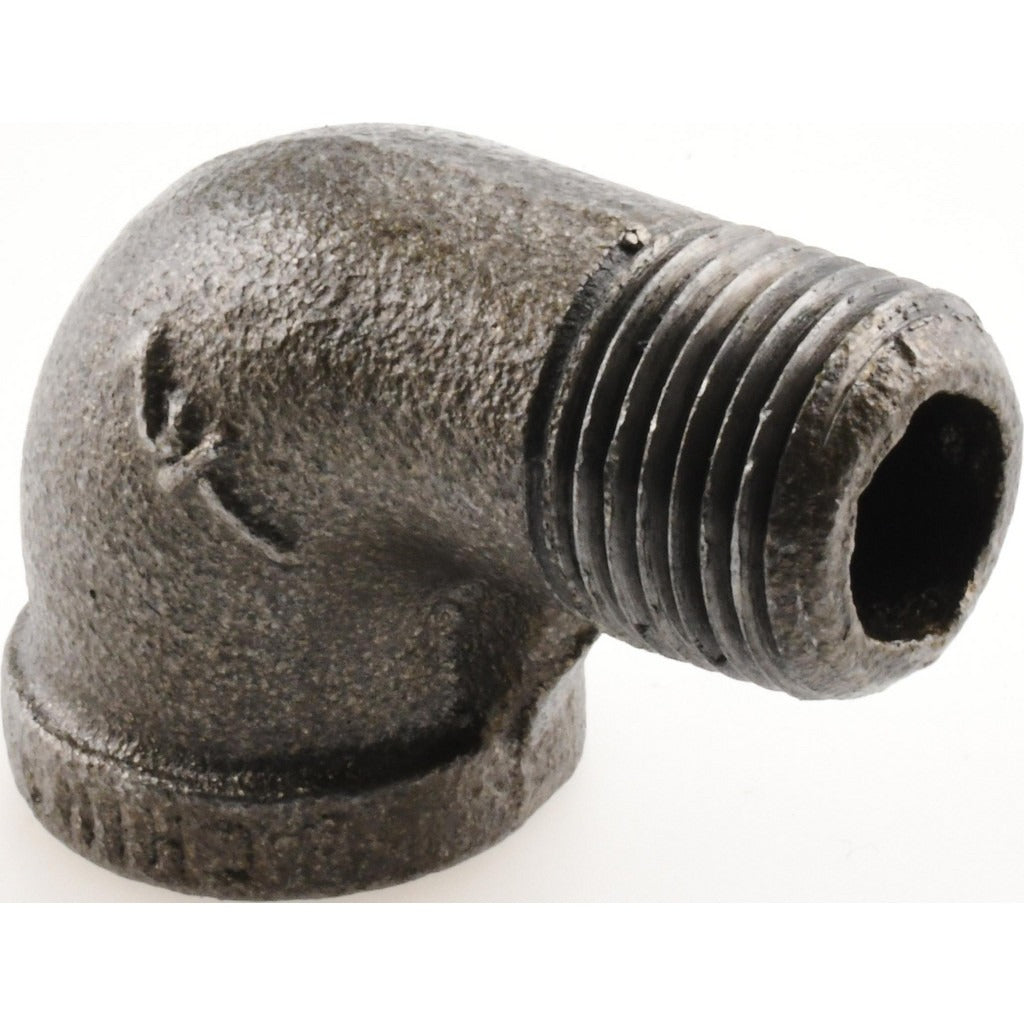

The VALUE COLLECTION MDB92 15-5 is a 90-degree street elbow fitting designed for threaded pipe assemblies in residential and commercial plumbing, gas distribution, and mechanical piping systems. Manufactured from malleable iron with a black finish, it meets Class 150 pressure ratings and carries multiple international certifications including FM Approved, cULus Listed, ABNT Certified, EN 10242, GB/T 3287, GB/T 7306.2, and ISO 7/1. The 1/2-inch fitting size suits a wide range of service lines. This fitting is installed by licensed plumbers and pipefitters working on low-pressure gas, water, and steam systems where a direction change from a street configuration is required.

This fitting is suited for use in residential and light commercial piping installations where a 90-degree directional change is needed directly off a threaded pipe end without the use of a separate nipple. Its malleable iron construction and black finish make it appropriate for gas service piping, fire protection branches, and general mechanical piping. The package includes 5 fittings per unit, making it practical for multi-point installations or service truck stocking.

Key Features

• 90-degree street elbow configuration eliminates need for a separate close nipple at direction changes
• Malleable iron construction provides durability in low-pressure gas, water, and steam applications
• Black finish suited for gas service and exposed mechanical piping
• Class 150 pressure rating
• Certified to FM, cULus, ABNT, EN 10242, GB/T 3287, GB/T 7306.2, and ISO 7/1 standards
• Sold in a package of 5 fittings

Compatibility

Designed as an OEM-style replacement or new-installation threaded malleable iron street elbow for 1/2-inch pipe systems conforming to Class 150 threaded fitting standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Fuel Gas Code or International Plumbing Code as required by the service type. Shut off and depressurize the piping system completely before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to male threads before assembly and tighten to appropriate engagement without over-torquing malleable iron threads. Do not use this fitting beyond its rated pressure class.
