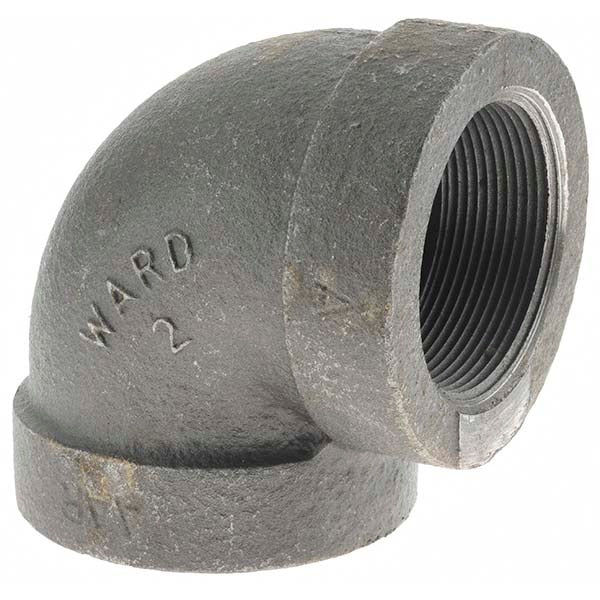

Value Collection MDB90 50-2 300 Black 90 Elbow 2 in

Product Description

The VALUE COLLECTION MDB90 50-2 300# is a 2-inch black malleable iron 90-degree elbow designed for threaded pipe systems operating at high pressure. Built to Class 300 specifications with a 1500 psi pressure rating, this fitting handles demanding liquid and gas distribution applications where standard fittings fall short. The black finish provides corrosion resistance suited to exposed or industrial environments. It is installed by licensed plumbers, pipefitters, and mechanical contractors as part of Schedule 80 piping assemblies. The fitting ships in a package quantity of two.

This elbow is used in commercial and industrial piping systems where high-pressure performance and code compliance are required. Typical applications include gas distribution, fire protection, and general fluid handling where threaded malleable iron construction is specified. The Class 300 rating makes it appropriate for systems that exceed the limitations of standard 150-class fittings. Its threaded end connections accept standard pipe thread for straightforward assembly into existing or new systems.

Key Features

• 1500 psi liquid and gas pressure rating for high-demand systems
• Malleable iron construction with black finish for durability and corrosion resistance
• Threaded end connections compatible with Schedule 80 piping
• Class 300 classification for elevated-pressure applications
• Multi-standard certified: ABNT, EN 10242, FM Approved, GB/T 3287, GB/T 7306.2, ISO 7/1, NSF/ANSI 372, NSF/ANSI 61, UIS Certified, cULus Listed

Compatibility

Designed as an OEM-style replacement or new-installation fitting for threaded Schedule 80 malleable iron piping systems requiring Class 300 pressure ratings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the IPC or IFGC. Shut off and depressurize the system completely before disassembling or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to all male threads before assembly. Do not over-tighten; follow standard trade practice for malleable iron threaded connections to avoid cracking the fitting.
