Value Collection MDB90 40-2 300 90 Elbow 1-1/2 in Threaded

Product Description

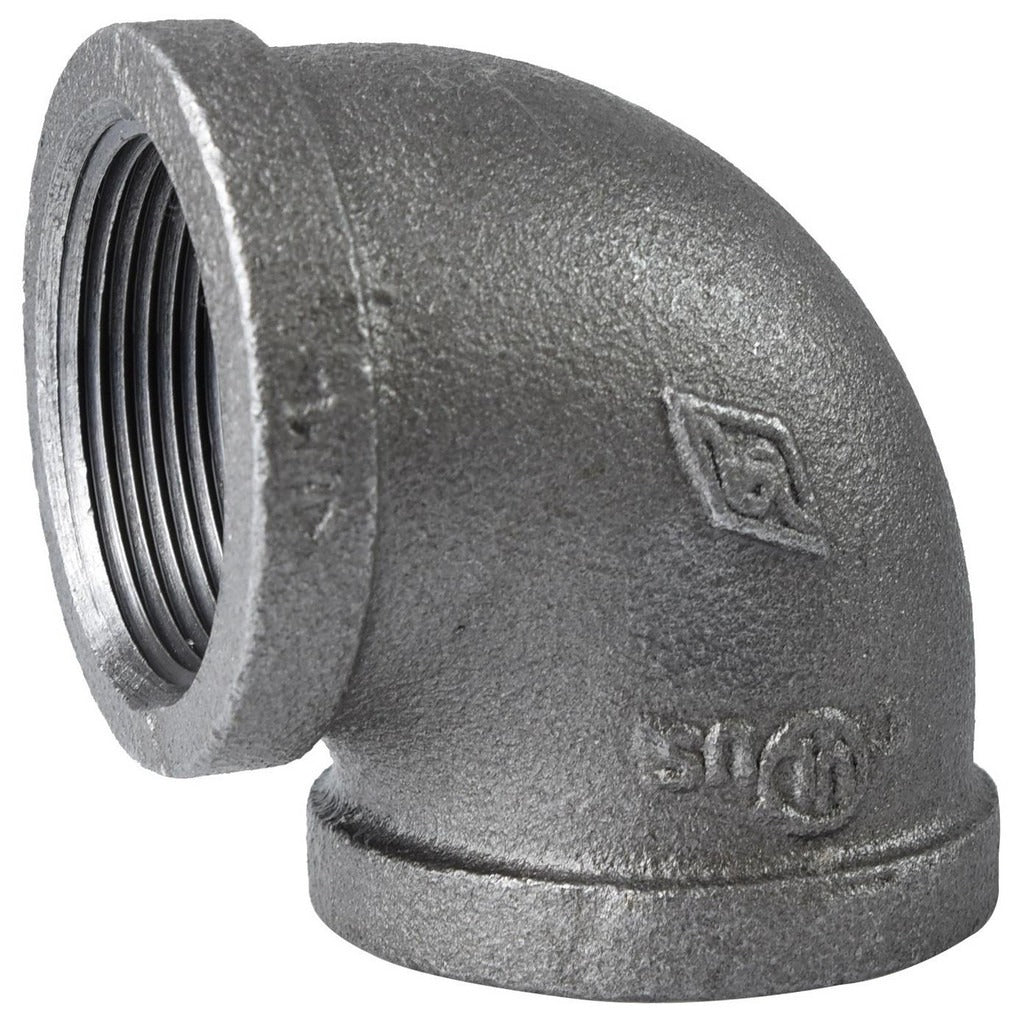

The VALUE COLLECTION MDB90 40-2 300# is a 1-1/2 inch threaded 90 degree elbow fitting made from malleable iron with a black finish. Rated Class 300 with a liquid and gas pressure rating of 1500 psi, this elbow is built for demanding piping systems where directional changes are required. The Schedule 80 construction and multi-standard certifications make it a reliable choice for licensed plumbers and pipefitters working on commercial and industrial installations. Sold in a package quantity of 2 per order.

This fitting is suited for threaded piping systems in commercial plumbing, gas distribution, fire protection, and industrial process lines. The 1-1/2 inch size and 90 degree angle configuration handle standard directional transitions in both new construction and retrofit projects. Its certifications cover a wide range of application requirements, including potable water contact compliance under NSF/ANSI 61 and lead-free compliance under NSF/ANSI 372.

Key Features

• 1-1/2 inch threaded end connections for standard pipe integration
• Class 300 rated with 1500 psi liquid and gas pressure capacity
• Malleable iron construction with black finish for durability
• Schedule 80 fitting for higher-pressure piping applications
• NSF/ANSI 61 and NSF/ANSI 372 certified for potable water use
• Multi-standard compliance: ABNT, EN 10242, FM Approved, GB/T 3287, GB/T 7306.2, ISO 7/1, cULus Listed, UIS Certified

Compatibility

Designed as an OEM-style replacement or new-installation fitting for threaded malleable iron piping systems requiring a 90 degree elbow at 1-1/2 inch pipe size in Class 300 applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off and depressurize the system completely before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to all male threads before assembly. Do not over-torque the fitting, as malleable iron is subject to cracking under excessive force.
