Value Collection MDB120 25-5 45 Degree Elbow 1 in

Product Description

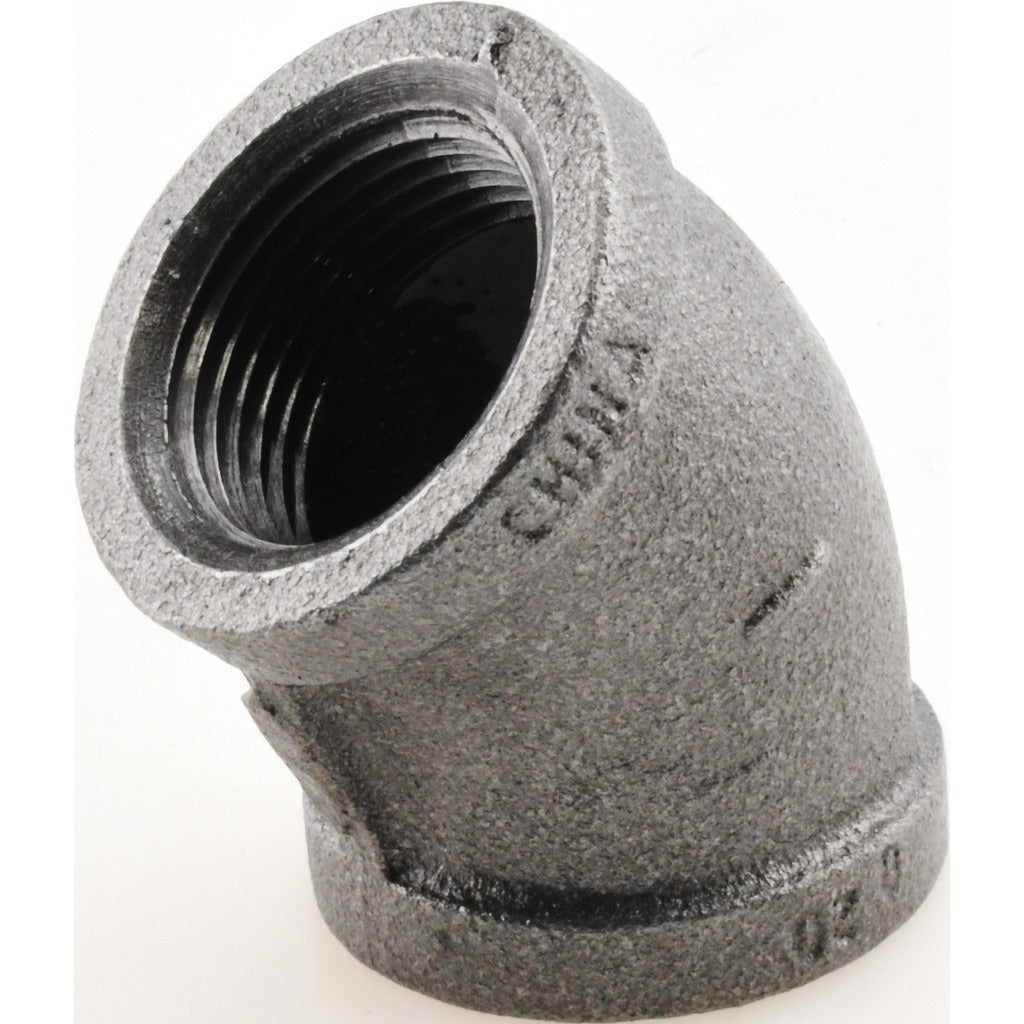

The VALUE COLLECTION MDB120 25-5 is a black-finish malleable iron 45-degree elbow fitting designed for threaded pipe assemblies. Rated Class 150, this elbow provides a reliable directional change in low-pressure piping systems used in plumbing, HVAC hydronic lines, and general industrial piping. The malleable iron construction offers greater ductility than cast iron, making it suitable for installations where vibration or minor mechanical stress is a factor. Compliance with EN 10242 and ISO 7/1 ensures consistent thread geometry and dimensional interchangeability with standard pipe fittings used in commercial and light industrial applications. Sold in a package of five.

This fitting is used in residential and commercial piping systems where a 45-degree change of direction is required on a 1-inch threaded line. Typical applications include gas distribution piping, steam and condensate lines, compressed air systems, and hydronic heating loops. Licensed plumbers, pipefitters, and HVAC mechanical contractors are the primary installers. The threaded connection type makes it compatible with standard tapered pipe thread connections on 1-inch nominal pipe.

Key Features

• Malleable iron construction provides ductility and resistance to mechanical shock
• Black finish for corrosion resistance in dry and low-moisture environments
• Class 150 pressure rating suitable for standard low-pressure piping applications
• Threaded connection conforms to ISO 7/1 and EN 10242 for dimensional consistency
• 1-inch fitting size for standard nominal pipe installations
• Sold in a convenient pack of five units

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch threaded malleable iron pipe systems conforming to EN 10242 and ISO 7/1 thread standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the supply line completely before disassembling any existing fittings. Apply an appropriate pipe thread sealant or PTFE tape to male threads before assembly to ensure a leak-free joint. Do not over-tighten threaded connections, as this can crack the fitting body.
