Value Collection MCRI0-801000-100BX 8-32 X 1 in Round Head Screw

Product Description

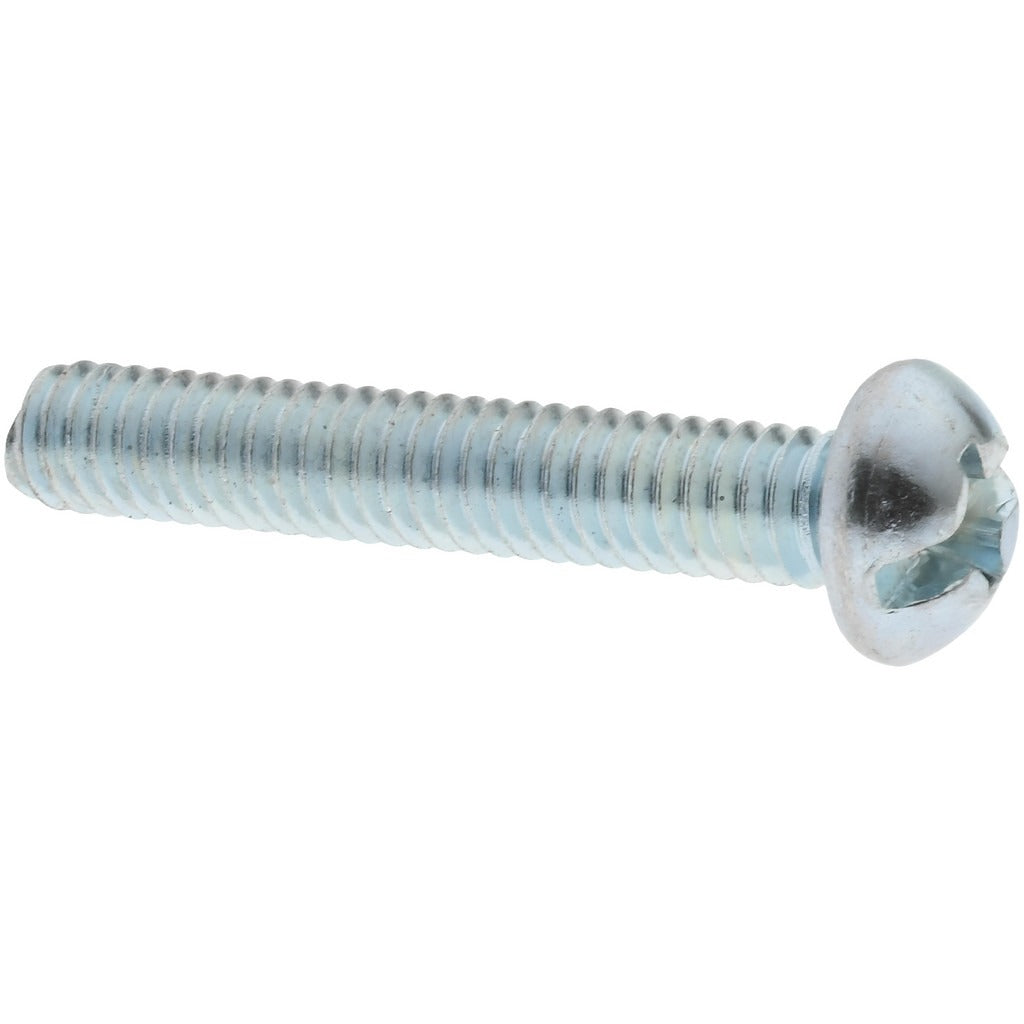

The VALUE COLLECTION MCRI0-801000-100BX is a standard 8-32 x 1 inch machine screw designed for general-purpose fastening across a wide range of trade and light industrial applications. It features a round head profile with a combination slotted-Phillips drive, allowing installation with either a flathead or Phillips screwdriver. Constructed from Grade 2 steel with a zinc-plated finish, the screw offers basic corrosion resistance suitable for indoor and protected environments. The 8-32 thread designation follows Unified National Coarse (UNC) standards. Length is measured under the head at 1 inch. These are sold in a box of 100 units.

This screw type sees regular use in HVAC equipment panels, electrical enclosures, junction boxes, control boards, and light-duty structural assemblies where a non-countersunk fastener is appropriate. The round head sits proud of the surface, making it a common choice when a flush finish is not required. The combination drive is especially practical in field service situations where a tech may have only one screwdriver type on hand. Suitable for use in both residential and light commercial service environments.

Key Features

• 8-32 UNC thread for compatibility with standard tapped holes and threaded inserts
• Round head profile provides a low-profile raised seat without countersinking
• Combination slotted-Phillips drive accepts both flat and Phillips drivers
• Grade 2 steel construction meets general-purpose mechanical fastening requirements
• Zinc-plated finish provides basic corrosion resistance for indoor and protected use
• Sold in a box of 100, sized for service van stock and job-site replenishment

Compatibility

Designed as a standard 8-32 UNC machine screw suitable for any application requiring an 8-32 tapped hole or threaded insert with a 1 inch length under head.

Installation Notes

Install with a Phillips or flathead screwdriver sized to the drive recess. Always de-energize equipment before fastening or removing screws in electrical enclosures or control panels, following NEC lockout-tagout requirements. Do not overtighten into plastic or soft metal threads, as Grade 2 steel can strip softer mating materials. Verify thread engagement depth in the mating part before applying torque.
