Value Collection MAFS0060016CP M6x1 Flat Socket Cap Screw

Product Description

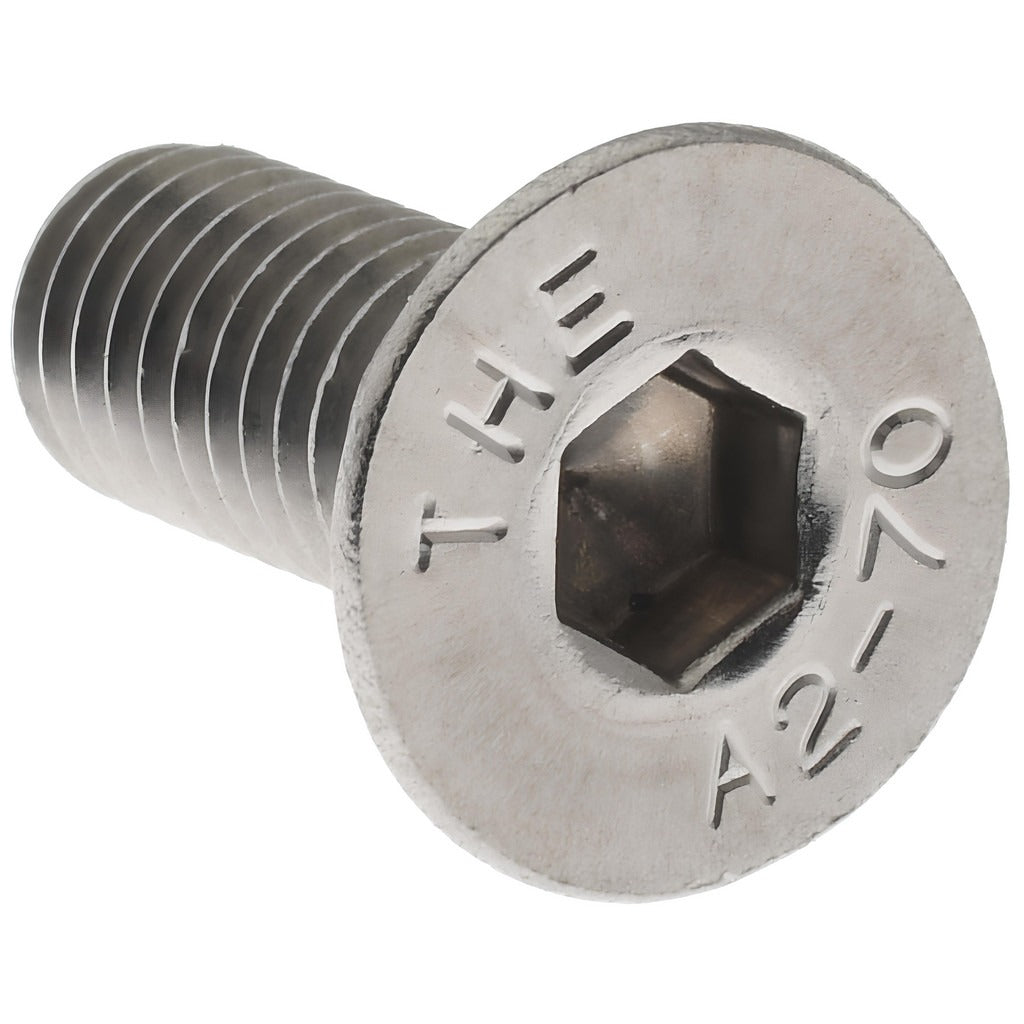

The VALUE COLLECTION MAFS0060016CP is a metric flat socket cap screw designed for flush or countersunk fastening applications. It features an M6x1 thread size with a 16 mm overall length and is fully threaded along its entire shank. The 90-degree flat head profile seats flush with the mating surface when installed in a properly countersunk hole. Drive engagement is through a 4.00 mm hex socket, which requires a corresponding hex key or Allen-type bit. The fastener is manufactured from 18-8 stainless steel, providing corrosion resistance suitable for general industrial, mechanical, and light marine environments. It conforms to DIN 7991, a widely recognized metric fastener standard. Licensed tradespeople and maintenance professionals use this style of screw where a low-profile head is needed.

This flat socket cap screw is suited for metric assemblies requiring a countersunk, flush-mount fastener. Typical applications include machine frames, equipment panels, jigs, fixtures, and structural components where a protruding head would interfere with clearance or aesthetics. The fully threaded shank provides full thread engagement across the entire fastened joint, making it appropriate for thinner materials or short-grip applications. It is sold in minimum order quantities of 100 pieces per order.

Key Features

• 90-degree flat head profile for flush countersunk installation
• M6x1 thread size conforming to metric thread standards
• 16 mm overall length, fully threaded
• 4.00 mm hex socket drive for Allen key or hex bit installation
• 18-8 stainless steel construction for corrosion resistance
• Conforms to DIN 7991 fastener standard

Compatibility

Designed as a metric DIN 7991 flat socket cap screw for use in any M6x1 threaded hole requiring a countersunk flush-mount fastener in metric assemblies.

Installation Notes

Install with a calibrated hex key or hex socket bit sized to 4.00 mm to avoid rounding the drive recess. Ensure the mating material is countersunk to 90 degrees to achieve proper head seating and full clamping load. De-energize and lock out any equipment before fastener replacement or disassembly. Avoid mixing metric and unified thread fasteners in the same tapped hole.
