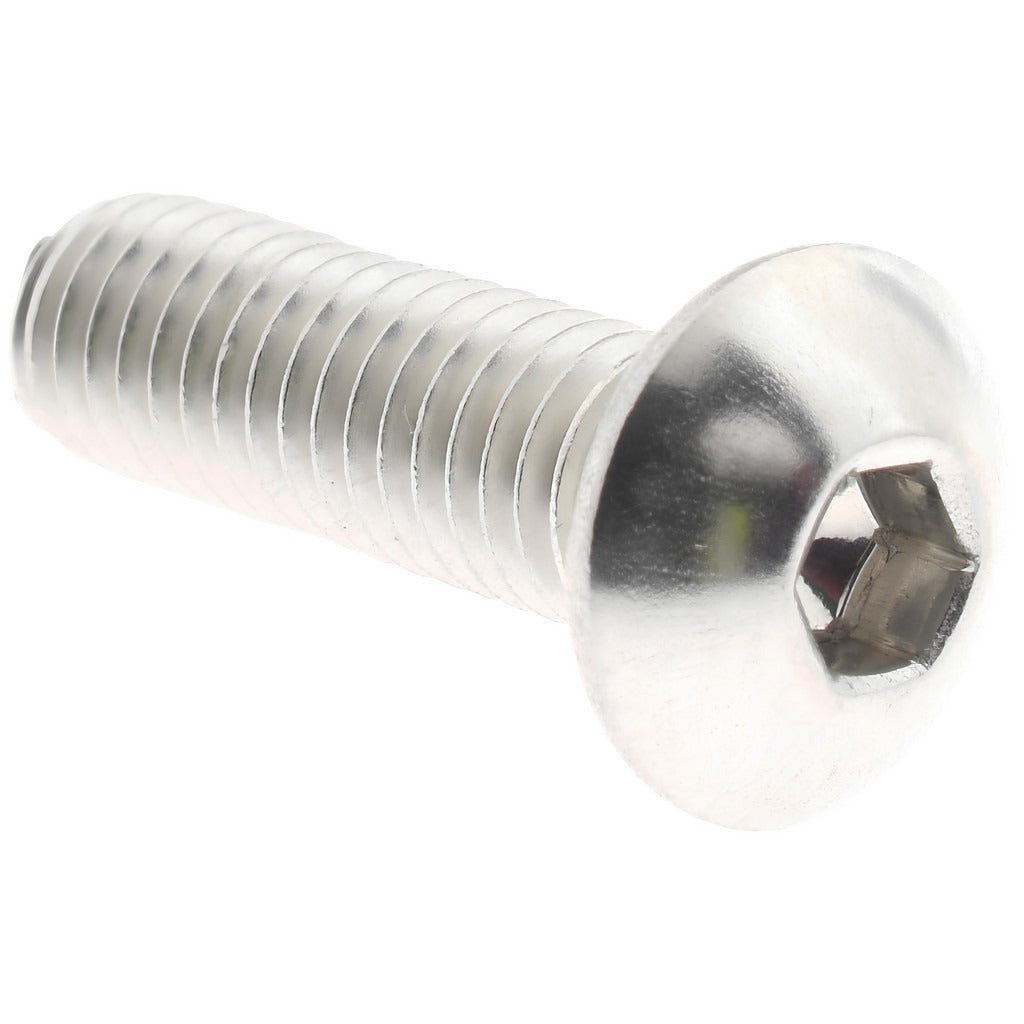

Value Collection MABS0050016CP M5x0.8 Button Cap Screw Ss

Product Description

The VALUE COLLECTION MABS0050016CP is a fully threaded M5x0.8 button socket cap screw manufactured from A2 (18-8) stainless steel with a bright, uncoated finish. The low-profile button head accepts a 3 mm hex socket drive and provides a clean, rounded appearance where protruding fastener heads are not acceptable. At 16 mm under the head, this screw suits a wide range of light-to-medium clamping applications. Conforming to ANSI/ASME B18.3.4M and ISO 7380 standards, it delivers consistent dimensional tolerances expected in precision assembly work. Minimum order quantity is 100 pieces.

This fastener is used in mechanical assemblies, equipment panels, enclosures, and structural fixtures where a metric thread, corrosion-resistant fastener is required. The A2 stainless steel construction makes it suitable for indoor and mildly corrosive outdoor environments. Machinists, maintenance technicians, equipment fabricators, and industrial assemblers regularly specify button socket cap screws in this size for panel mounting, guard attachment, and machine frame assembly.

Key Features

• Button head profile reduces snag points and provides a low-profile clamping surface
• M5x0.8 metric thread with right-hand direction conforms to ISO 7380 and ANSI/ASME B18.3.4M
• A2 (18-8) stainless steel offers good corrosion resistance without additional coating
• 3 mm hex socket drive for standard Allen key or hex bit installation
• Fully threaded shank along the 16 mm length under head for maximum thread engagement
• Bright, uncoated finish maintains dimensional accuracy for close-tolerance applications

Compatibility

Designed as an OEM-style metric fastener for use in any assembly requiring an M5x0.8 right-hand thread button socket cap screw conforming to ISO 7380 or ANSI/ASME B18.3.4M dimensional standards.

Installation Notes

Installation is performed with a 3 mm hex key or hex socket bit driver. Ensure mating threads are clean and free of debris before driving. Do not exceed the torque capacity appropriate for A2 stainless steel M5 fasteners, as stainless hardware is susceptible to galling if driven too aggressively or without lubrication. Apply a suitable anti-seize compound when installing into stainless or aluminum tapped holes to prevent thread seizure.
