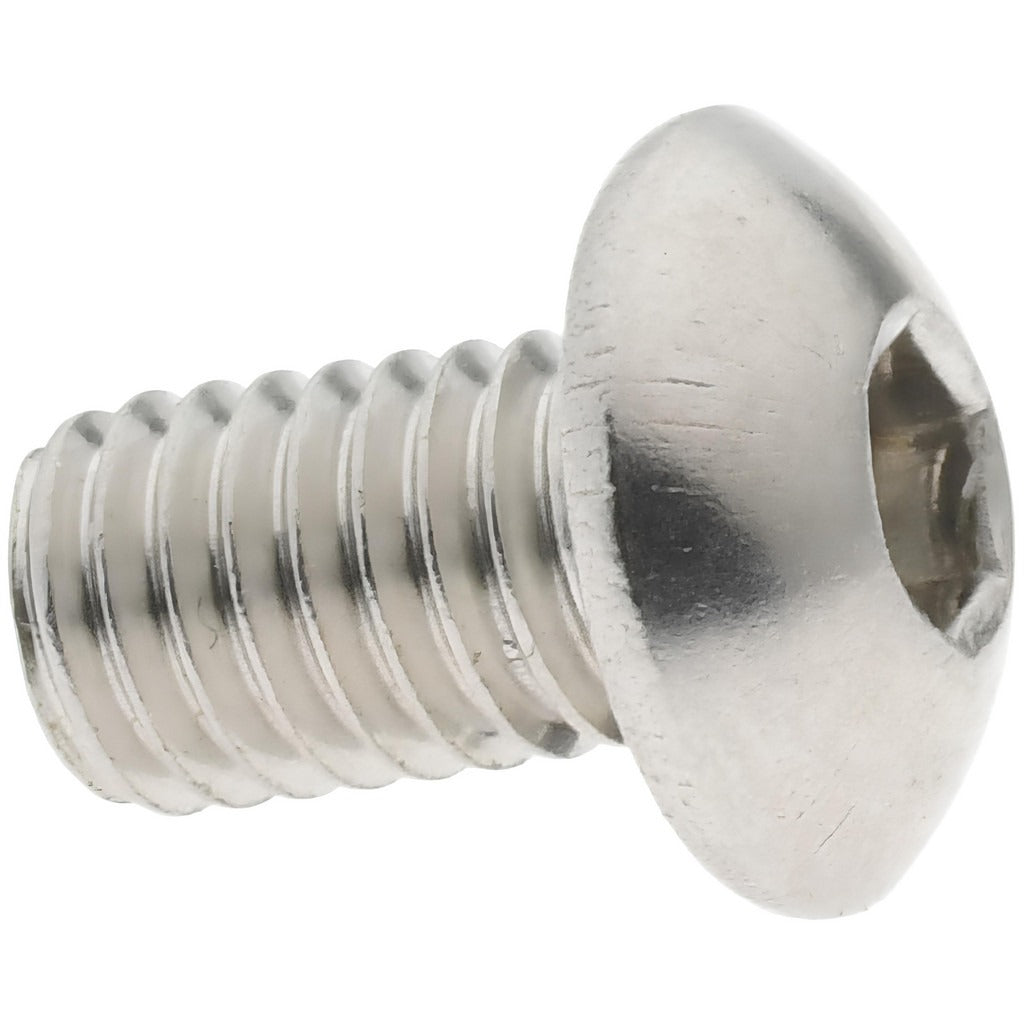

Value Collection MABS0050008CP M5x0.8 Button Socket Cap Screw

Product Description

The VALUE COLLECTION MABS0050008CP is a fully threaded button socket cap screw designed for metric fastening applications. Manufactured from A2 (18-8) stainless steel with a bright, uncoated finish, this screw offers corrosion resistance suited to general industrial and mechanical assembly work. The low-profile button head and 3 mm hex socket drive make it well-suited for applications where clearance is limited or a smooth topside profile is required. It conforms to ANSI/ASME B18.3.4M and ISO 7380 standards. The M5x0.8 thread size and 8 mm length under head cover a wide range of light-to-medium clamping tasks. Sold individually with a minimum order quantity of 50 pieces.

This fastener is used in mechanical assemblies, machine guarding, panel mounting, and equipment fabrication where a metric button-head profile is specified. The right-hand thread and hex socket drive are compatible with standard metric hex keys and Allen drivers. It is appropriate for both shop and field use by machinists, millwrights, maintenance technicians, and fabricators working to metric specifications in industrial or commercial environments.

Key Features

• A2 (18-8) stainless steel construction provides corrosion resistance for indoor and light outdoor use
• Button head profile keeps a low, rounded topside for clearance-sensitive assemblies
• 3 mm hex socket drive accepts standard metric Allen keys and hex bit drivers
• Fully threaded M5x0.8 shank with right-hand thread direction
• Conforms to ANSI/ASME B18.3.4M and ISO 7380 fastener standards
• Bright, uncoated finish maintains dimensional accuracy without coating buildup

Compatibility

Designed as a standard ISO 7380 metric button socket cap screw suitable for M5x0.8 threaded applications in mechanical assemblies, enclosures, and fabricated components per ANSI/ASME B18.3.4M specifications.

Installation Notes

Installation requires a 3 mm hex key or Allen-style bit driver. Ensure mating threads are clean and free of debris before driving. Do not exceed the torque capacity appropriate for A2 stainless steel at M5 thread size, as stainless fasteners are susceptible to galling if driven too aggressively without lubrication. Follow applicable mechanical and structural fastening codes for the assembly type.
