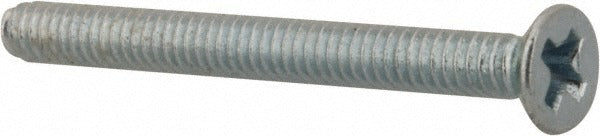

Value Collection M220D965 M2x0.4 Flat Head Phillips Screw

Product Description

The VALUE COLLECTION M220D965 is a metric machine screw designed for precision fastening in light-duty mechanical assemblies, electronics, and instrumentation. This M2x0.4 flat head Phillips screw is manufactured from Grade 4.8 steel with a zinc finish for basic corrosion resistance. It measures 20mm in overall length and conforms to DIN 965, the standard governing metric countersunk flat head screws. The flat head profile allows the fastener to sit flush with or below the mating surface when driven into a countersunk hole. Installed using a Phillips driver, this screw is suited for applications where low-profile fastening and thread engagement in tapped or threaded inserts are required.

This screw is used in light mechanical assemblies, electronic enclosures, sheet metal panels, and small equipment housings where an M2x0.4 thread form is specified. The DIN 965 standard and metric thread specification make it appropriate for use in equipment manufactured to metric tolerances. Typical installers include assembly technicians, electronics maintenance personnel, and mechanical tradespeople working on metric-standard components. Sold in multiples of 100 units, this screw is suited for production assembly and service shop stock.

Key Features

• M2x0.4 metric thread form per DIN 965 standard
• Flat countersunk head seats flush with the mating surface
• Phillips drive compatible with standard Phillips bits and screwdrivers
• Grade 4.8 steel provides adequate tensile strength for light-duty fastening
• Zinc finish offers basic corrosion protection in dry or low-humidity environments
• No washer — standard washered applications require a separate flat washer if needed

Compatibility

Designed as an OEM-style replacement or service stock fastener for metric-standard assemblies requiring an M2x0.4 flat head Phillips screw per DIN 965.

Installation Notes

Install using a correctly sized Phillips driver to avoid cam-out on the small M2 head. Ensure the receiving hole is properly countersunk to the DIN 965 head angle before driving to achieve a flush seating. Do not overtorque — Grade 4.8 fasteners at M2 diameter have low torque thresholds and are susceptible to head stripping or shank failure if driven beyond specification. Power down or de-energize any equipment before fastening into electrical enclosures or control panels.
