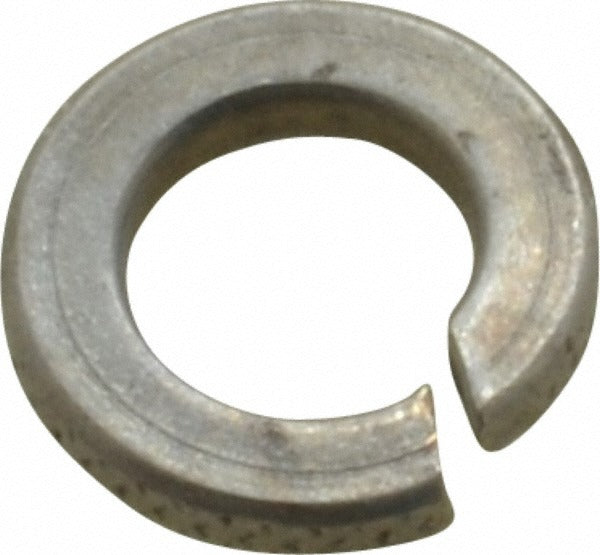

Value Collection LWHIS0-80USA-100BX Split Lock Washer

Product Description

The VALUE COLLECTION LWHIS0-80USA-100BX is a Grade 2 spring steel split lock washer sized for No. 8 screws. The split lock design applies tension under a fastener head or nut, resisting loosening caused by vibration and thermal cycling. The washer features a zinc plated finish for basic corrosion resistance in indoor and light-duty applications. Inside diameter runs 0.167 to 0.174 inches with a maximum outside diameter of 0.307 inches and a thickness of 0.047 inches. These are sold as a box of 100 pieces. Electricians, HVAC technicians, plumbers, and general mechanical contractors use split lock washers as a standard fastening component across a wide range of assembly and equipment mounting tasks.

This washer is suited for use with No. 8 machine screws in residential and light commercial applications. Common installation scenarios include panel mounting, equipment enclosures, bracket assemblies, and general mechanical fastening where vibration resistance is needed. The inch-measurement sizing and zinc plated finish make this washer a fit for standard domestic hardware applications that do not require military-specification compliance.

Key Features

• Split lock design resists loosening under vibration and load cycling
• Grade 2 spring steel provides reliable elastic tension without brittleness
• Zinc plated finish offers basic corrosion protection for indoor and dry environments
• Inside diameter 0.167 to 0.174 inches fits No. 8 screw shanks
• Maximum outside diameter of 0.307 inches and thickness of 0.047 inches for compact fastening profiles
• Box quantity of 100 pieces supports job-site stock and repetitive assembly work

Compatibility

Designed for use with No. 8 screw fasteners in inch-measurement assemblies. Intended for standard mechanical and electrical fastening applications that do not require military-specification hardware.

Installation Notes

Install split lock washers between the fastener head or nut and the mating surface before final torque is applied. Power down or de-energize any equipment before performing fastening work inside electrical enclosures or on live assemblies. Use appropriate hand tools to achieve firm seating without over-compressing the washer, which would eliminate its locking action. Follow applicable codes and equipment manufacturer guidelines for fastener specifications.
