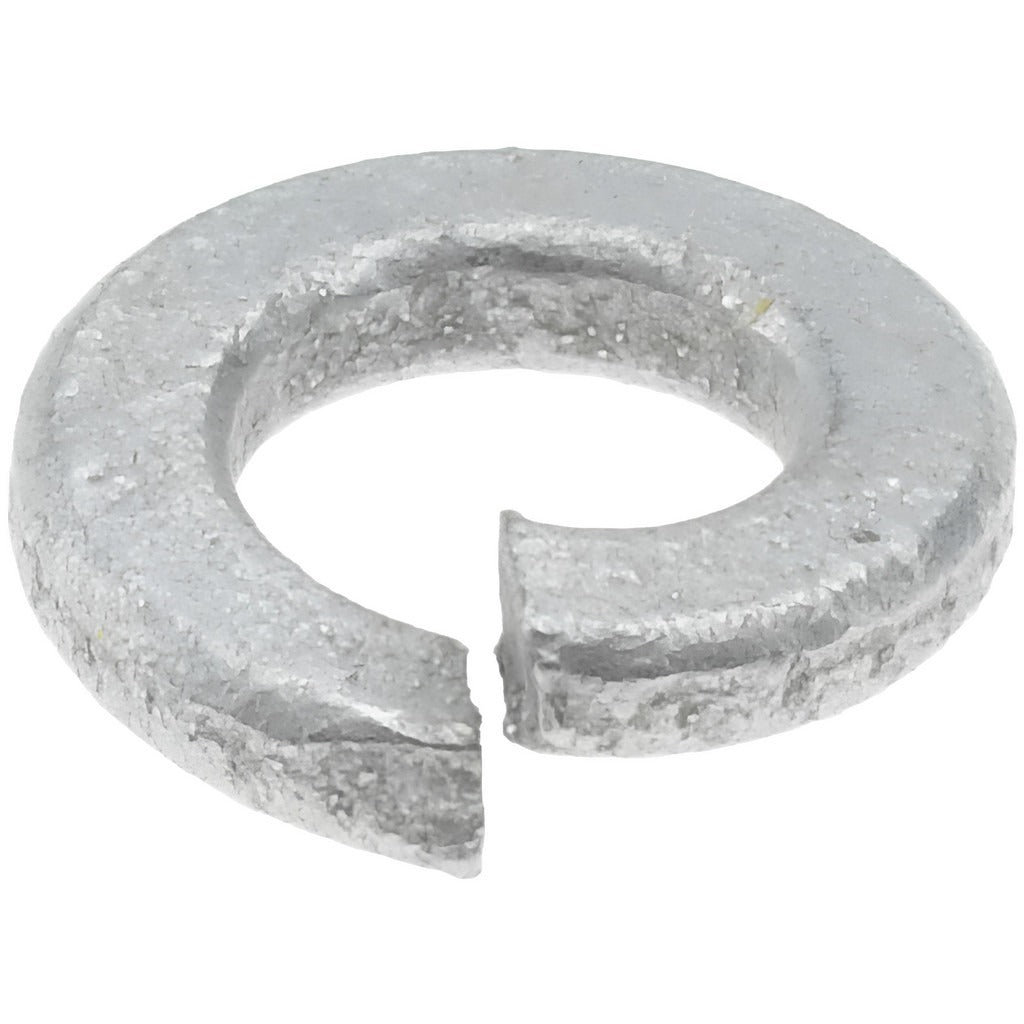

Value Collection LWHIS0-60USA-100BX No. 6 Split Lock Washer

Product Description

The VALUE COLLECTION LWHIS0-60USA-100BX is a No. 6 split lock washer manufactured from Grade 2 spring steel with a zinc plated finish. Split lock washers apply a continuous spring load under a fastener head or nut, resisting loosening caused by vibration and thermal cycling. This washer features a 0.141 inch minimum inside diameter, a 0.266 inch maximum outside diameter, and a 0.04 inch thickness. It is sold in a box quantity of 100 pieces, with a minimum order quantity of 100. Licensed tradespeople and maintenance technicians reach for this style of washer across mechanical, electrical, and structural fastening applications where joint integrity under dynamic loads is required.

This split lock washer is suited for use with No. 6 machine screws in residential and light commercial applications. Typical install scenarios include panel enclosures, electrical junction boxes, HVAC equipment covers, plumbing fixture brackets, and general sheet-metal assemblies where a standard helical lock washer is specified. The inch-system sizing and zinc plated finish make it a common fit for domestic fastener specifications. The box quantity of 100 supports service van restocking and job-site use.

Key Features

• Grade 2 spring steel construction provides consistent clamp load retention under vibration
• Zinc plated finish offers corrosion resistance for indoor and protected outdoor environments
• 0.141 inch minimum ID sized for No. 6 screw shafts
• 0.266 inch maximum OD keeps bearing surface compact for small fastener clearances
• 0.04 inch thickness conforms to standard helical split lock washer geometry
• Box of 100 pieces supports bulk restocking for service and maintenance work

Compatibility

Designed for use with No. 6 inch-series machine screws and bolts where a helical split lock washer is specified in the fastener assembly.

Installation Notes

Split lock washers are installed between the fastener head or nut and the mating surface before final torque is applied. Ensure the fastener, washer, and mating material are free of debris and burrs prior to assembly. When used in electrical enclosures or equipment, de-energize all circuits before accessing fastened panels in accordance with applicable NFPA 70 lockout procedures. Do not reuse split lock washers that have been fully flattened, as the spring action will be compromised.
