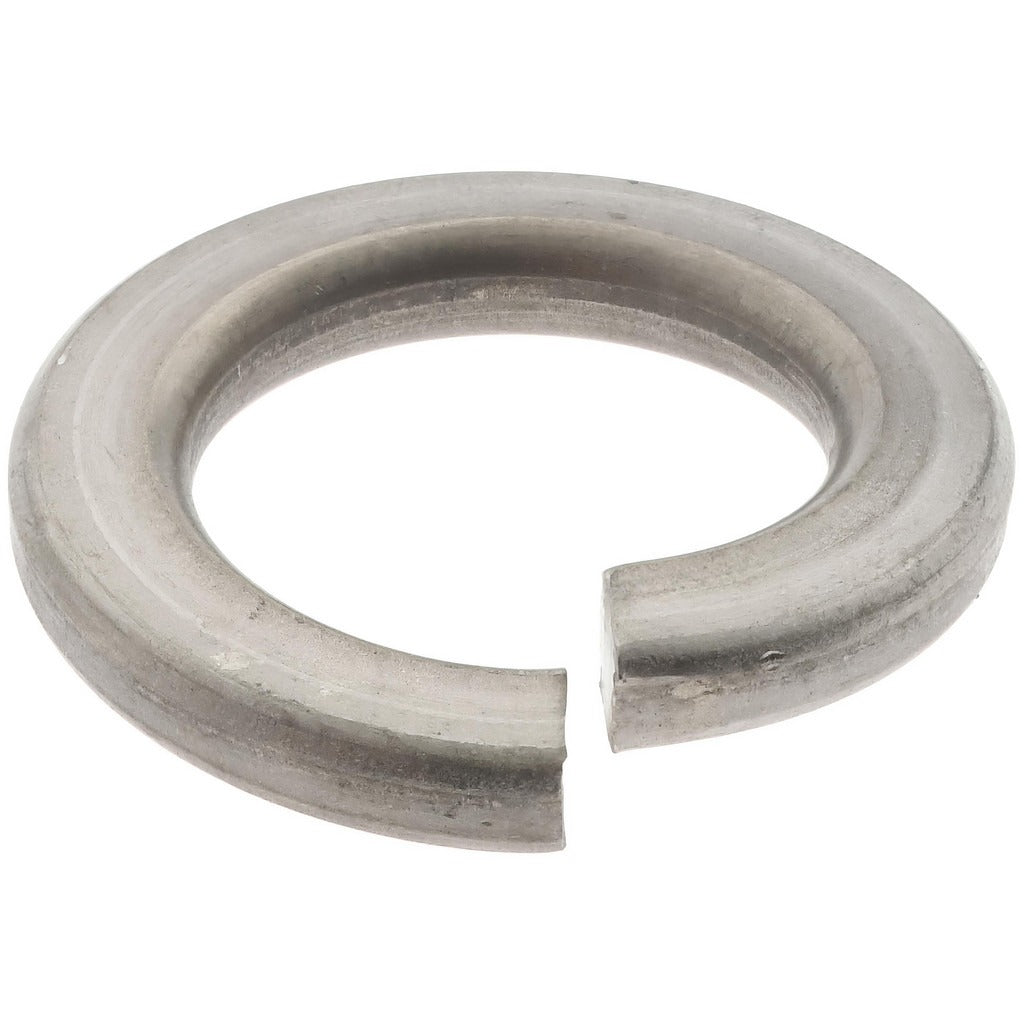

Value Collection LW7X01600-100BX M16 Split Lock Washer

Product Description

The VALUE COLLECTION LW7X01600-100BX is a metric split lock washer sized for M16 fasteners, manufactured from 18-8 austenitic stainless steel to Grade A2 classification. The split lock design creates a spring-tension interface between the fastener head and the mating surface, resisting loosening caused by vibration and dynamic loads. With an inside diameter of 16.2 mm, a maximum outside diameter of 27.4 mm, and a thickness of 3.5 mm, this washer conforms to DIN 127B standards. Sold in a minimum order quantity of 100 pieces, it is suited for plumbers, pipefitters, and mechanical contractors working with metric-standard assemblies in corrosion-prone environments.

This washer is used in residential and commercial applications where M16 metric bolts or screws require vibration resistance and corrosion protection. The 18-8 stainless steel construction makes it appropriate for wet, humid, or mildly chemical environments such as mechanical rooms, outdoor equipment mounts, pump housings, and plumbing bracket assemblies. It is a direct-fit metric fastener component for any assembly specified to DIN 127B, and is ordered in multiples of 100 pieces to meet project-scale demand.

Key Features

• 18-8 austenitic stainless steel construction provides corrosion resistance in wet and humid service environments
• Grade A2 material classification meets standard metric fastener material requirements
• DIN 127B compliant geometry ensures dimensional consistency with metric hardware assemblies
• Split lock profile generates spring tension to resist vibration-induced fastener loosening
• Inside diameter range of 16.2 to 17 mm accommodates M16 fastener shanks
• Sold in 100-piece minimum order quantities for job-site and shop inventory use

Compatibility

Designed for use with M16 metric fasteners in assemblies conforming to DIN 127B split lock washer specifications.

Installation Notes

Install split lock washers between the fastener head and the mating surface before torquing the fastener to the assembly specification. Power down or depressurize any system before servicing fastened connections on mechanical or plumbing equipment. Do not reuse washers that have been fully compressed flat, as the lock spring function is diminished. Stainless steel fastener hardware should be installed using proper anti-seize practices to prevent galling during assembly.
