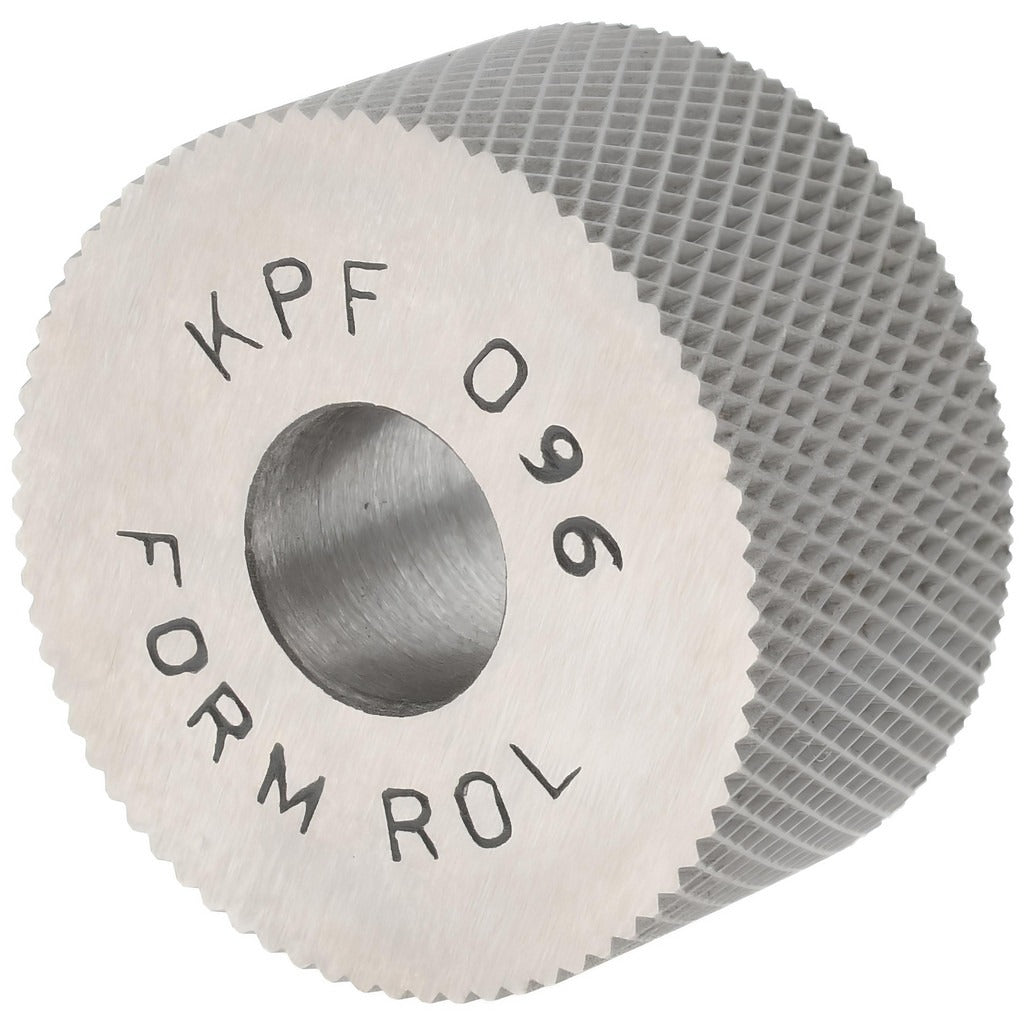

Value Collection KPF-096 Knurl Wheel 3/4 in Diamond Hss

Product Description

The VALUE COLLECTION KPF-096 is a standard form knurl wheel designed for use in manual and CNC knurling operations on metal lathes and knurling tools. Manufactured from high-speed steel with a bright finish, this wheel produces a female diamond pattern through a form-cut method. It measures 0.75 inches in diameter with a 0.375-inch face width and a 0.25-inch hole diameter. The 96 diametral pitch and 80-degree included tooth angle deliver a consistent, defined diamond texture across ferrous and non-ferrous workpieces. A 30-degree helix angle contributes to smooth tracking during the knurling pass. Machinists and toolroom operators working in production or job shop environments rely on this wheel for gripping surfaces, decorative texturing, and press-fit preparation.

The KPF-096 belongs to the KP series of standard knurl wheels and is suited for use in both light-duty manual lathes and production turning centers. It is appropriate for knurling operations on shafts, handles, knobs, and other cylindrical workpieces where a diamond grip pattern is required. The compact diameter and face width make it compatible with standard knurling tool holders that accept 0.75-inch diameter wheels with a 0.25-inch bore. Typical applications include tool handle texturing, instrument component finishing, and mechanical assembly prep work in machine shops, maintenance facilities, and manufacturing environments.

Key Features

• Female diamond tooth pattern produced by form-cut method for consistent texture depth
• High-speed steel construction provides durability across extended production runs
• Bright finish reduces surface friction and supports clean knurl formation
• 96 diametral pitch delivers fine, closely spaced tooth geometry
• 30-degree helix angle supports stable tracking during the knurling pass
• KP series designation for straightforward replacement and toolholder matching

Compatibility

Designed as a standard KP-series replacement knurl wheel for knurling tool holders that accept 0.75-inch diameter wheels with a 0.25-inch bore and 0.375-inch face width.

Installation Notes

Installation is performed by machinists using standard knurling tool holders; confirm the holder bore and wheel seat dimensions match before mounting. Power down and lock out the lathe or turning center before seating or removing the knurl wheel. Secure the wheel per the tool holder manufacturer's guidance and verify the wheel spins freely without side play before beginning the knurling pass. Inspect the wheel for chipped or worn teeth prior to each use to avoid inconsistent pattern transfer.
