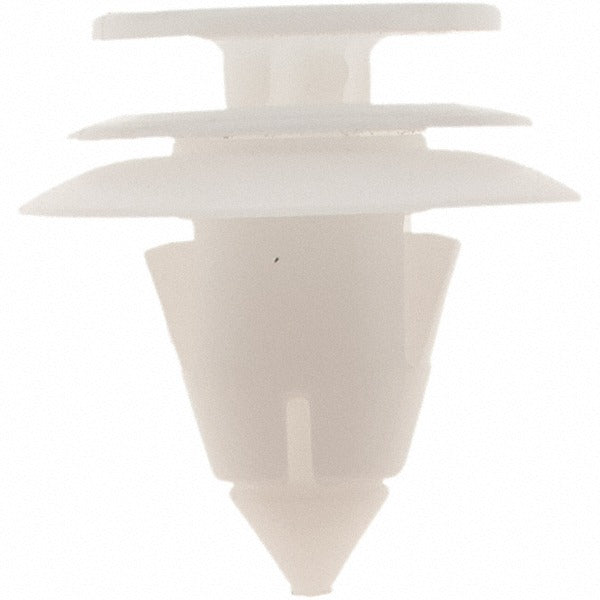

Value Collection KP425 Nylon Panel Rivet 9mm Hole 25-pack

Product Description

The VALUE COLLECTION KP425 is a nylon panel rivet with a ratchet shank, designed for fastening thin panels and trim components in place without the need for tools beyond initial insertion. The ratchet shank locks into position as it is pushed through the mounting hole, providing a secure hold that resists pull-out under normal service conditions. Made from natural-colored nylon, this rivet is lightweight and corrosion-resistant, making it well suited for interior panel applications where metal fasteners would add unnecessary weight or risk surface damage. Each rivet has a 9mm maximum hole diameter, a 20mm head diameter, and an overall length of 21mm.

The KP425 is used in panel attachment applications across automotive, HVAC cabinet assembly, electrical enclosure trim, and general sheet goods installation. The 15mm length under the head accommodates material thickness up to 9mm, making it appropriate for single-layer thin panels and trim pieces. Installers working on equipment covers, access panels, or interior liner retention will find this rivet a straightforward push-in solution. This product is sold in a package of 25 pieces.

Key Features

• Ratchet shank design locks on insertion without additional tooling
• Natural nylon construction resists corrosion and is non-marring to panel surfaces
• 9mm maximum hole diameter fits standard panel punch sizes
• 20mm head diameter provides broad bearing surface to distribute clamping load
• 15mm length under head accommodates material up to 9mm thick
• Sold in packs of 25 for small-batch or service call quantities

Compatibility

Designed as a general-purpose push-in panel fastener for applications requiring a 9mm mounting hole and material thickness up to 9mm.

Installation Notes

Panel rivets of this type are installed by hand or with light mallet pressure — no crimping tool is required. Ensure the mounting hole diameter matches the 9mm specification before insertion, as oversized holes will reduce retention force. Depress or pry the center pin if removal and reuse are needed, though nylon ratchet rivets are generally considered single-use fasteners. Power down or de-energize any associated equipment before servicing panels on electrical or HVAC enclosures.
