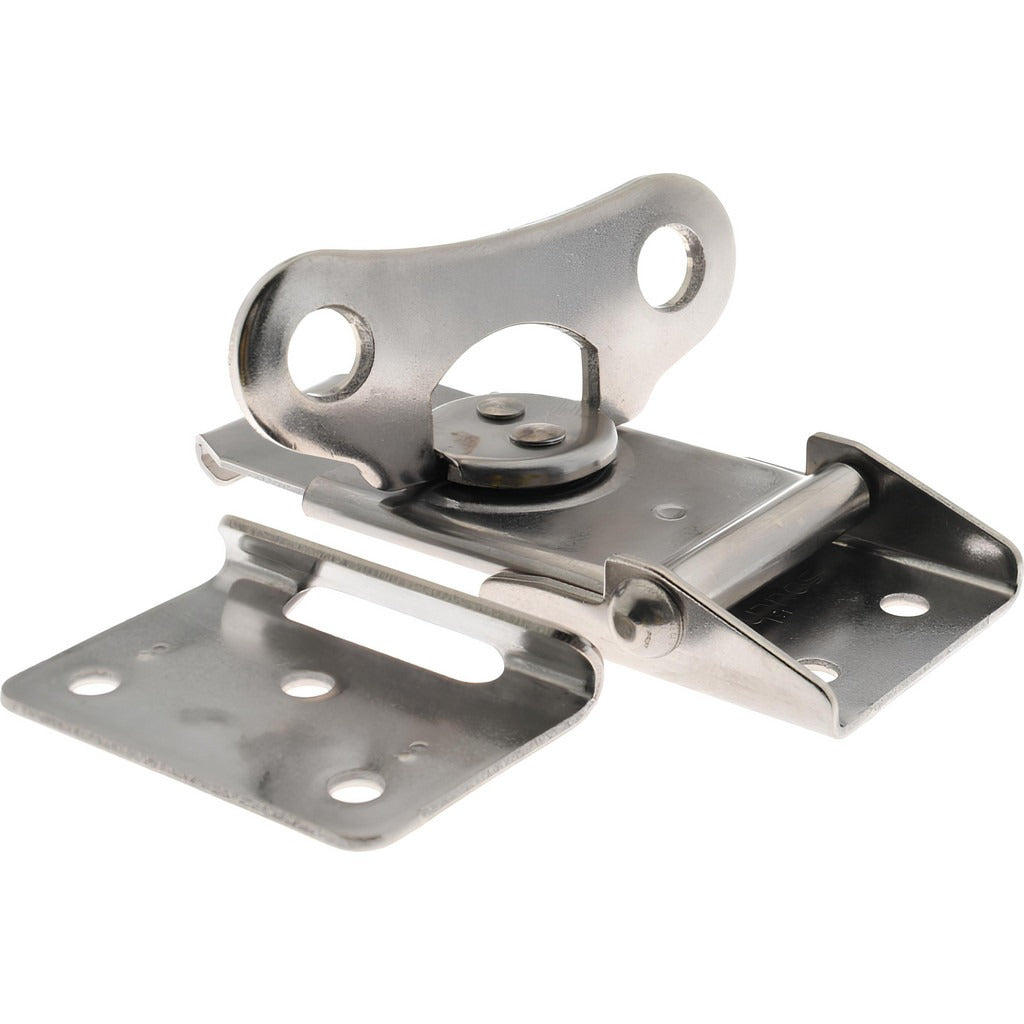

Value Collection K5-99-128-52 Draw Door Latch Stainless

Product Description

The VALUE COLLECTION K5-99-128-52 is a draw door latch made from stainless steel with a natural finish. Draw latches use a over-center cam action to pull two surfaces together and hold them under tension, making them a reliable fastening solution for enclosures, access panels, equipment doors, and tool storage. This latch measures 2.75 inches wide and 0.67 inches tall with a total body length of 3.43 inches. At 0.4 pounds, it is lightweight without sacrificing holding strength. Electricians, HVAC technicians, and general contractors install latches like this during enclosure fabrication or panel door service.

This draw latch is suited for light-duty to medium-duty applications in both residential and commercial settings. Typical installations include HVAC equipment access doors, electrical enclosure covers, junction box lids, tool chest drawers, and utility cabinet doors. The stainless steel construction makes it appropriate for environments with moisture exposure or corrosion risk, such as mechanical rooms, outdoor equipment housings, and wash-down areas. The natural finish is uncoated, preserving the inherent corrosion resistance of the stainless steel base material.

Key Features

• Stainless steel construction for corrosion resistance in wet or humid environments
• Natural finish with no added coating that could chip or peel
• Overall width of 2.75 inches and height of 0.67 inches for compact panel fitment
• 0.36-inch travel allows firm over-center engagement without excessive throw
• 0.345-inch pin diameter and 0.75-inch mount hole center spacing simplify replacement and layout
• Lightweight at 0.4 pounds, suitable for frequent door or panel operation

Compatibility

Designed as a standard draw latch replacement or new-installation fastener for equipment enclosures, access panels, and cabinet doors requiring a stainless steel, natural-finish latch with a 2.75-inch body width and 0.75-inch mounting hole center spacing.

Installation Notes

De-energize and lock out any electrical enclosure or powered equipment before servicing its door or latch hardware in accordance with applicable NFPA 70E lockout/tagout procedures. Use a drill and appropriate bit to match the 0.75-inch hole center spacing on the mounting surface. Secure with fasteners appropriate for the substrate material and panel thickness. Verify that the latch engages fully over-center after installation to ensure positive retention under vibration or pressure.
