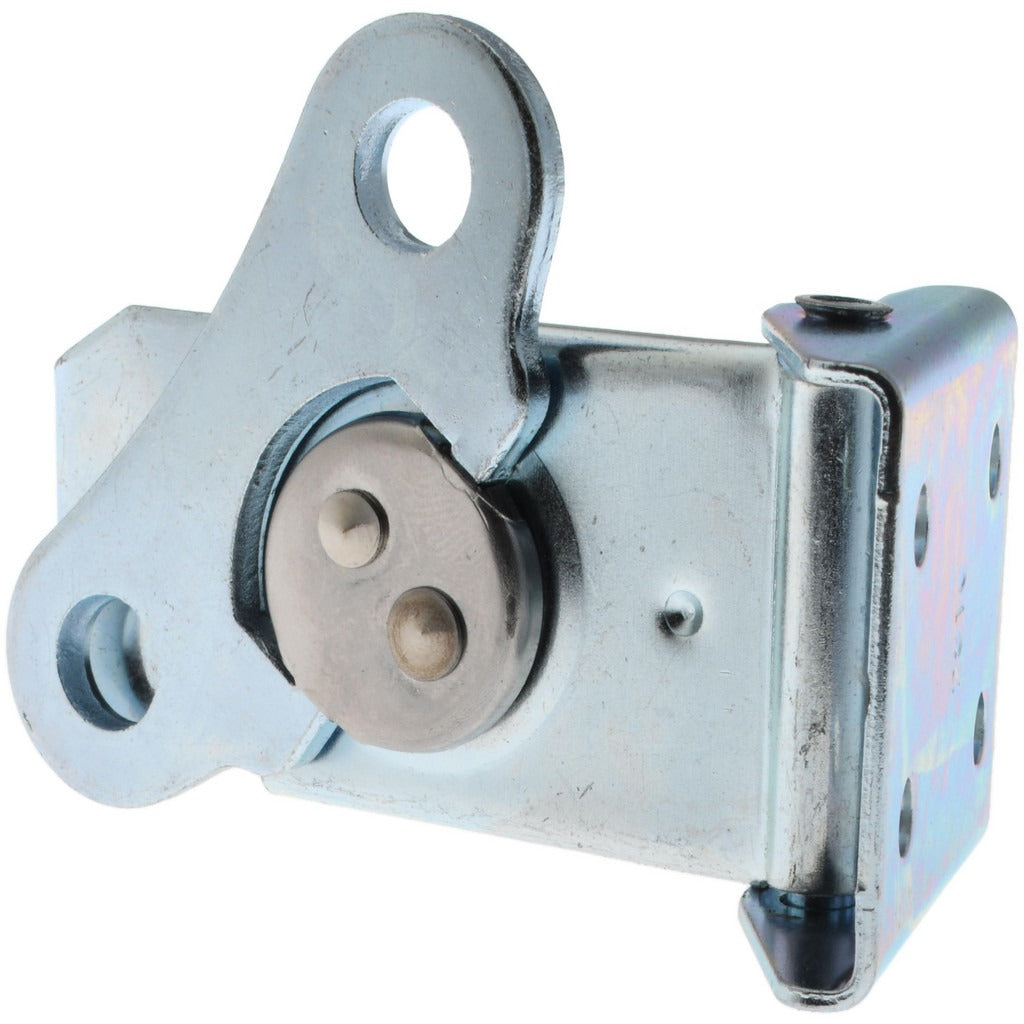

Value Collection K5-99-127-07 Draw Door Latch Steel

Product Description

The VALUE COLLECTION K5-99-127-07 is a draw-style door latch manufactured from steel with a zinc plate bright chromate dip finish. Draw latches use a cam-and-hook mechanism to pull two surfaces tightly together and hold them closed under tension. This latch measures 2.75 inches in overall width and 0.67 inches in overall height, with a total body length of 3.43 inches. The bright chromate dip finish provides a corrosion-resistant surface suitable for light industrial and commercial enclosure applications. Millwrights, maintenance technicians, and general tradespeople install this type of hardware on access panels, cabinet doors, enclosures, and equipment housings.

This draw latch is suited for residential and light commercial applications where a secure, tool-free door or panel closure is needed. Typical installations include HVAC equipment access panels, electrical enclosure doors, control cabinet lids, and similar hinged covers. The large size designation makes it appropriate for panels requiring a firm pull-down closure with moderate holding force. The 0.36-inch travel and 0.31-inch pin diameter are matched to standard latch keeper hardware.

Key Features

• Steel construction with zinc plate bright chromate dip finish for corrosion resistance
• 2.75-inch overall width and 0.67-inch overall height for compact panel mounting
• 3.43-inch body length with 0.36-inch travel for positive draw closure
• 0.75-inch distance between mounting hole centers for straightforward panel drilling
• 0.312-inch pin diameter compatible with standard keeper hardware
• Large size designation suitable for access panels and equipment enclosure doors

Compatibility

Designed as an OEM-style replacement or direct-install draw latch for access panels, enclosure doors, and hinged cabinet covers requiring a secure pull-down closure.

Installation Notes

Installation is performed by maintenance technicians or millwrights using standard hand tools. Power down or de-energize any enclosure before mounting hardware to interior panel surfaces. Align the latch body and keeper plate to the manufacturer-specified hole centers before fastening. Verify that latch travel is unobstructed and that the draw action pulls the door surface flush before returning the panel to service.
