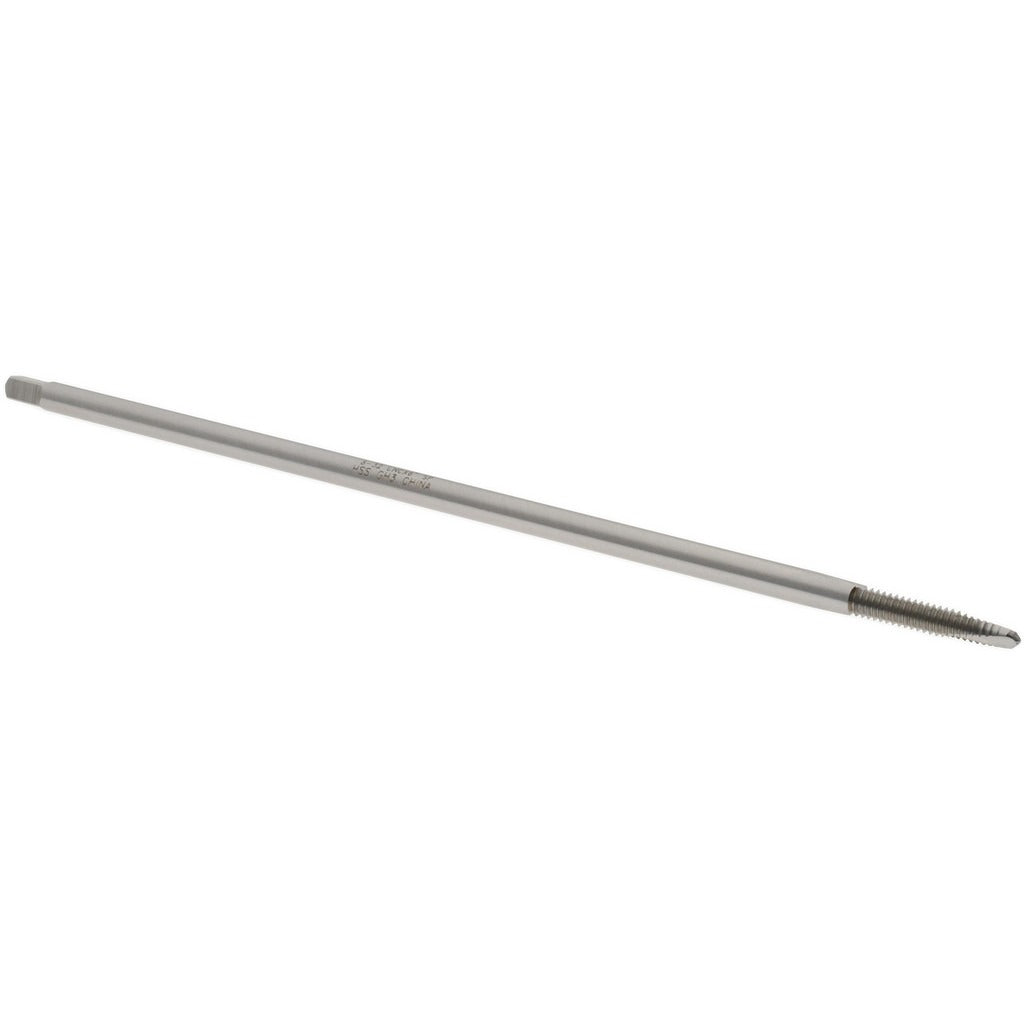

Value Collection JY9975764 Extension Tap 8-32 Unc Hss

Product Description

The VALUE COLLECTION JY9975764 is a spiral point plug extension tap designed for cutting 8-32 UNC internal threads in through-hole applications. Built from high-speed steel, it delivers reliable wear resistance across a range of ferrous and non-ferrous materials. The spiral point geometry pushes chips forward ahead of the cutting action, making it well suited for through-hole tapping where chip evacuation is critical. With an overall length of 6 inches, this extension tap reaches into recessed or deep features that standard-length taps cannot access. The H3 thread limit provides controlled tolerance for consistent 2B class of fit results.

This tap is used in machine shop, maintenance, and production environments where standard tap reach is insufficient. Extension taps are common in fixture repair, deep-cavity assemblies, and inline tapping operations. The 8-32 UNC thread size is widely encountered in electrical enclosures, panel hardware, instrument mounting, and light mechanical assemblies. Machinists, tool and die technicians, and maintenance mechanics working on equipment with limited access will find the 6-inch shank length practical for both CNC and manual tapping operations.

Key Features

• Spiral point plug chamfer pushes chips forward for efficient through-hole tapping
• High-speed steel construction resists heat and wear during cutting
• H3 thread limit ensures consistent 2B class of fit on finished threads
• 6-inch overall length provides extended reach into deep or recessed bores
• 2-flute design reduces cutting torque in smaller thread sizes
• No reduced shank — full shank diameter maintained for rigid tool holding

Compatibility

Designed as an OEM-style replacement and general-use extension tap for applications requiring 8-32 UNC internal threads with a 2B class of fit in through-hole configurations.

Installation Notes

Extension taps of this type are installed by machinists and maintenance mechanics using standard tap handles, T-handles, or CNC tapping chucks compatible with the tap shank diameter. Always apply appropriate cutting fluid for the workpiece material to extend tap life and improve thread finish. Ensure the workpiece is securely fixtured and the tap is aligned perpendicular to the hole before beginning the cut. Inspect the tap for wear or chipping before each use — a damaged tap can seize in the bore and damage the workpiece.
