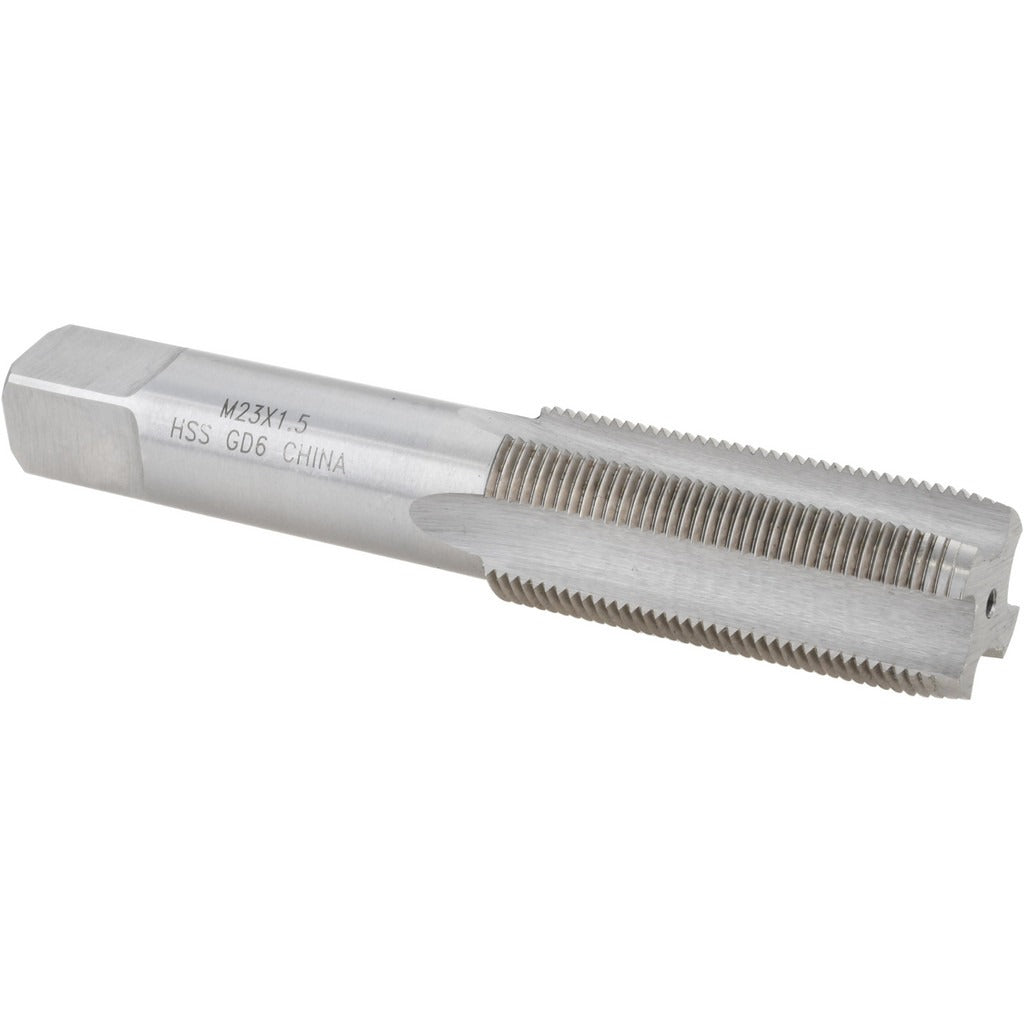

Value Collection JY9037250 M23x1.5 Straight Flute Tap Hss

Product Description

The VALUE COLLECTION JY9037250 is a straight flute tap designed for cutting M23x1.5 metric special internal threads in a variety of materials. Built from high-speed steel (HSS) with a bright, uncoated finish, it delivers reliable performance in general threading applications. The tap features 4 flutes, a plug chamfer for balanced entry and thread engagement, and a 6H class of fit with a D6 thread limit. With an overall length of 4.6875 inches and a thread length of 2.21875 inches, it is sized for standard machine or hand tapping setups. Right-hand thread direction is standard. Machinists and tool-and-die professionals are the primary users of this tap.

This tap is suited for threading operations requiring M23x1.5 metric special pitch threads. The plug chamfer — typically 3 to 5 threads of taper — makes it appropriate for through-hole and moderately deep blind-hole applications. It is used in machine shops, maintenance and repair operations, and manufacturing environments where metric special thread forms are specified. The bright, uncoated finish is appropriate for use with cutting oils and standard coolant-free threading operations where coating is not required.

Key Features

• M23x1.5 metric special thread form for non-standard pitch applications
• 4-flute straight design provides rigidity and consistent chip clearance
• Plug chamfer suitable for through-holes and moderately deep blind holes
• High-speed steel construction handles a broad range of workpiece materials
• 6H class of fit with D6 thread limit for standard tolerance threading
• Right-hand thread direction, no coolant-through — compatible with standard setups

Compatibility

Designed as a direct-fit tap for applications requiring M23x1.5 metric special internal threads. Compatible with standard tap holders and collet chucks sized for this tap geometry.

Installation Notes

Tapping operations should be performed by a qualified machinist following applicable shop safety procedures. Secure the workpiece and tap holder firmly before operation to prevent tap breakage. Apply appropriate cutting oil or tapping fluid to extend tap life and improve thread finish. For blind-hole applications, calculate hole depth carefully to avoid bottoming the tap under power.
