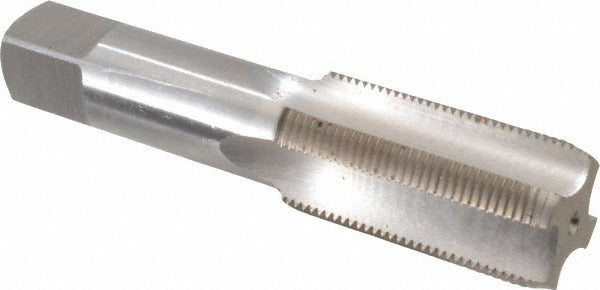

Value Collection JY9036955 Straight Flute Tap M32x2

Product Description

The VALUE COLLECTION JY9036955 is a straight flute tap designed for cutting metric fine internal threads in a bottoming application. Built from high-speed steel (HSS) with a bright, uncoated finish, this tap handles M32x2 thread profiles in through-holes and blind holes where full thread depth close to the bottom is required. The bottoming chamfer engages the workpiece quickly at depth, making it well suited for tight-tolerance threading operations. With an overall length of 5.75 inches and a thread length of 2.5625 inches, the tap provides adequate reach for standard workpiece thicknesses. Four flutes help evacuate chips during the threading cycle.

This tap is intended for use on machining centers, drill presses, and manual tapping setups where M32x2 metric fine threads are specified. Metric fine thread forms are common in precision mechanical assemblies, automotive drivetrain components, and hydraulic fittings where a finer pitch provides greater resistance to loosening under vibration. The right-hand thread direction is standard for the vast majority of threading applications. A D7 thread limit designation indicates the tolerance class of the resulting thread, appropriate for fits requiring controlled oversize tolerance.

Key Features

• M32x2 metric fine thread profile for precision threading applications
• Bottoming chamfer allows threading close to the bottom of blind holes
• High-speed steel construction provides hardness and wear resistance across a range of workpiece materials
• Four straight flutes support chip evacuation in through-hole and shallow blind-hole operations
• D7 thread limit ensures controlled tolerance for consistent thread fit
• Bright, uncoated finish — no coating buildup to affect thread dimension accuracy

Compatibility

Designed as a standard replacement or production tap for M32x2 metric fine threading operations; compatible with standard tapping chucks and tap holders accepting the corresponding shank diameter for this tool size.

Installation Notes

Threading operations should be performed by a qualified machinist following applicable shop safety procedures. Secure the workpiece firmly before engaging the tap, and use an appropriate tapping fluid or cutting oil to reduce friction and extend tool life. For bottoming applications in blind holes, carefully control depth to avoid tap breakage from bottoming out under excessive force. Inspect the tap for wear or chipping before each use, and never force a dull or damaged tap.
