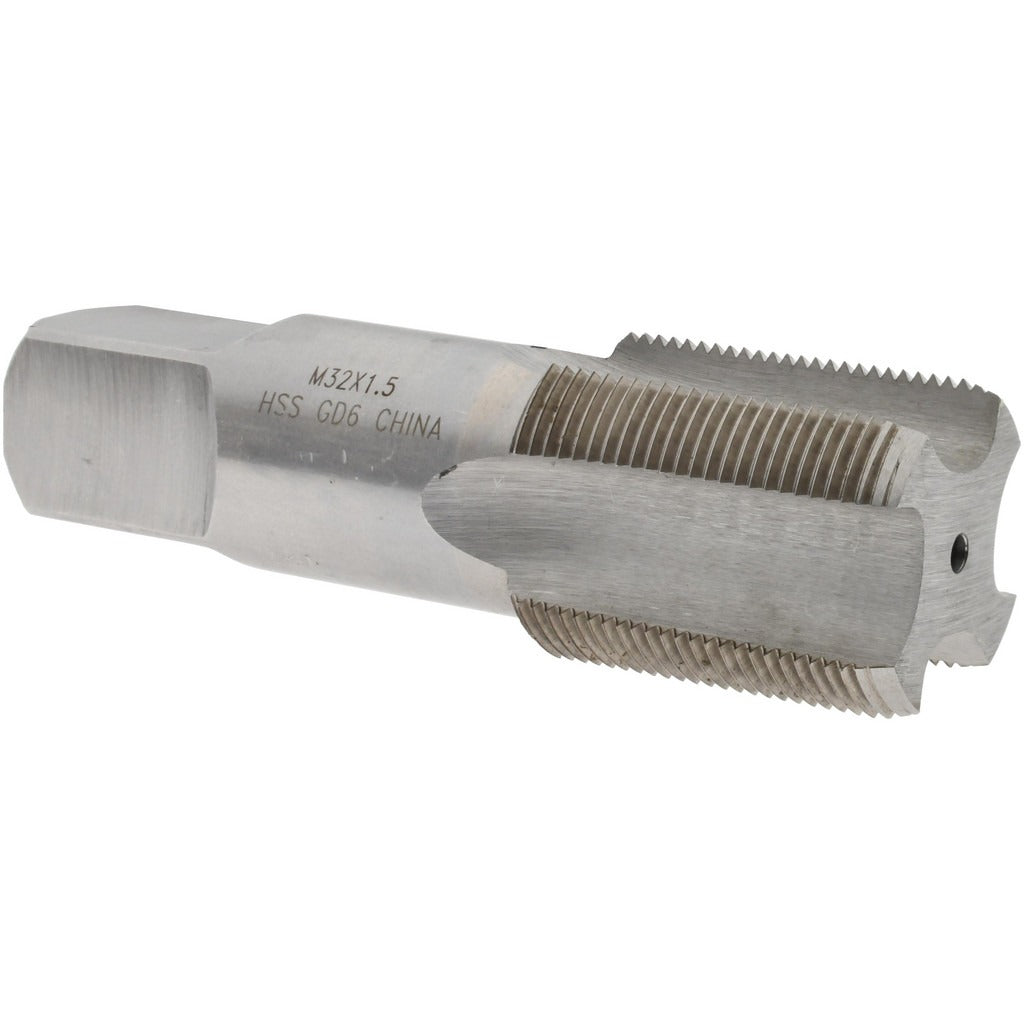

Value Collection JY9036948 M32x1.5 Straight Flute Tap Hss

Product Description

The VALUE COLLECTION JY9036948 is a straight flute tap designed to cut M32x1.5 metric fine internal threads in through-holes and blind holes with limited depth clearance. Built from high-speed steel (HSS) with a bright, uncoated finish, it delivers reliable thread-cutting performance in a range of ferrous and non-ferrous workpiece materials. The bottoming chamfer — with only 1 to 2 lead threads — allows threading to within a very short distance of the bottom of a blind hole. With 4 flutes and a D6 thread limit, this tap suits general-purpose production and maintenance tapping where close thread tolerance is required. Overall length is 4 inches with a thread length of 1.5 inches.

This tap is used in machine shop, maintenance, and toolroom applications where M32x1.5 metric fine threads are required. It is well suited to situations where a plug or taper tap has already started the thread and a bottoming tap is needed to complete threading to full depth in a blind hole. Typical applications include thread repair, fixture fabrication, and production tapping of threaded bores in mechanical assemblies. Right-hand thread direction is standard for conventional tapping operations.

Key Features

• Bottoming chamfer allows threading to near the bottom of blind holes
• M32x1.5 metric fine thread form for tight-pitch, high-strength thread engagement
• 4-flute straight design provides chip clearance in short-chipping materials
• High-speed steel construction handles a broad range of workpiece materials
• D6 thread limit and 6H class of fit for standard metric tolerance threads
• Bright, uncoated finish — no coating variables to account for in toleranced applications

Compatibility

Designed for use in standard tapping chucks, tap holders, and CNC rigid-tapping setups that accept straight shank taps sized for M32 applications. Coolant-through tooling is not supported.

Installation Notes

Machinists and toolroom technicians should ensure the workpiece is securely fixtured and the tap is properly aligned before beginning the tapping cycle. For blind-hole applications, use a plug or taper tap to start the thread before finishing with this bottoming tap. Apply appropriate cutting fluid for the workpiece material to extend tap life and reduce the risk of tap breakage. Inspect the tap for wear or damage before each use, and never force a tap that shows resistance — back it off to clear chips before continuing.
