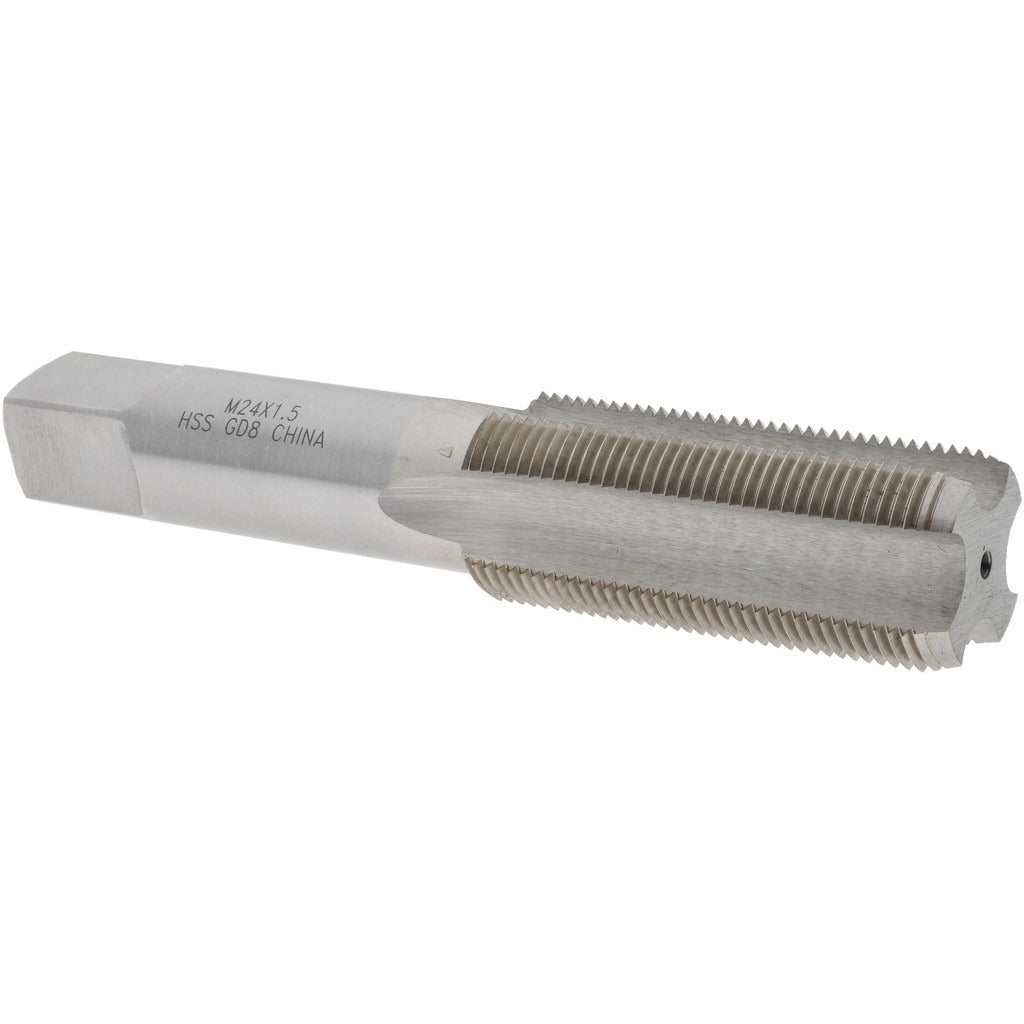

Value Collection JY9036864 Straight Flute Tap M24x1.5

Product Description

The VALUE COLLECTION JY9036864 is a straight flute tap designed for cutting M24x1.5 metric fine internal threads in blind holes. Built from high-speed steel (HSS) with a bright uncoated finish, it delivers reliable thread-cutting performance across a range of metals including steel, aluminum, and cast iron. The bottoming chamfer style allows threading close to the bottom of a blind hole, making it the correct choice when full thread depth is required near the hole floor. With 4 flutes and a D8 thread limit, this tap suits applications where dimensional accuracy and clean thread form are critical.

This tap is used in machining, maintenance, and repair applications requiring M24x1.5 metric fine threads. The fine thread pitch makes it well suited for applications where vibration resistance or precise thread engagement is needed, such as automotive, hydraulic, and precision mechanical assemblies. It is installed by machinists and maintenance technicians working on manual or CNC tapping operations. The right-hand thread direction is standard for the vast majority of threaded fastener applications.

Key Features

• Bottoming chamfer for threading to the bottom of blind holes
• M24x1.5 metric fine thread form for fine-pitch thread applications
• 4-flute geometry provides stable cutting action and good chip control
• High-speed steel construction handles a wide range of workpiece materials
• 6H class of fit meets standard metric thread tolerance requirements
• D8 thread limit for controlled oversize threading
• No coolant-through requirement — compatible with standard tapping fluid application

Compatibility

Designed as a standard straight flute tap for use in any application requiring an M24x1.5 metric fine internal thread with a bottoming chamfer profile.

Installation Notes

Installation is performed by qualified machinists or maintenance technicians using a tap wrench, tapping head, or CNC tapping cycle. Always ensure the workpiece is securely fixtured and the pilot hole is drilled to the correct M24x1.5 minor diameter before tapping. Apply an appropriate cutting fluid or tapping compound to extend tool life and improve thread finish. Power down or disengage any rotating equipment before manually reversing the tap to break chips.
