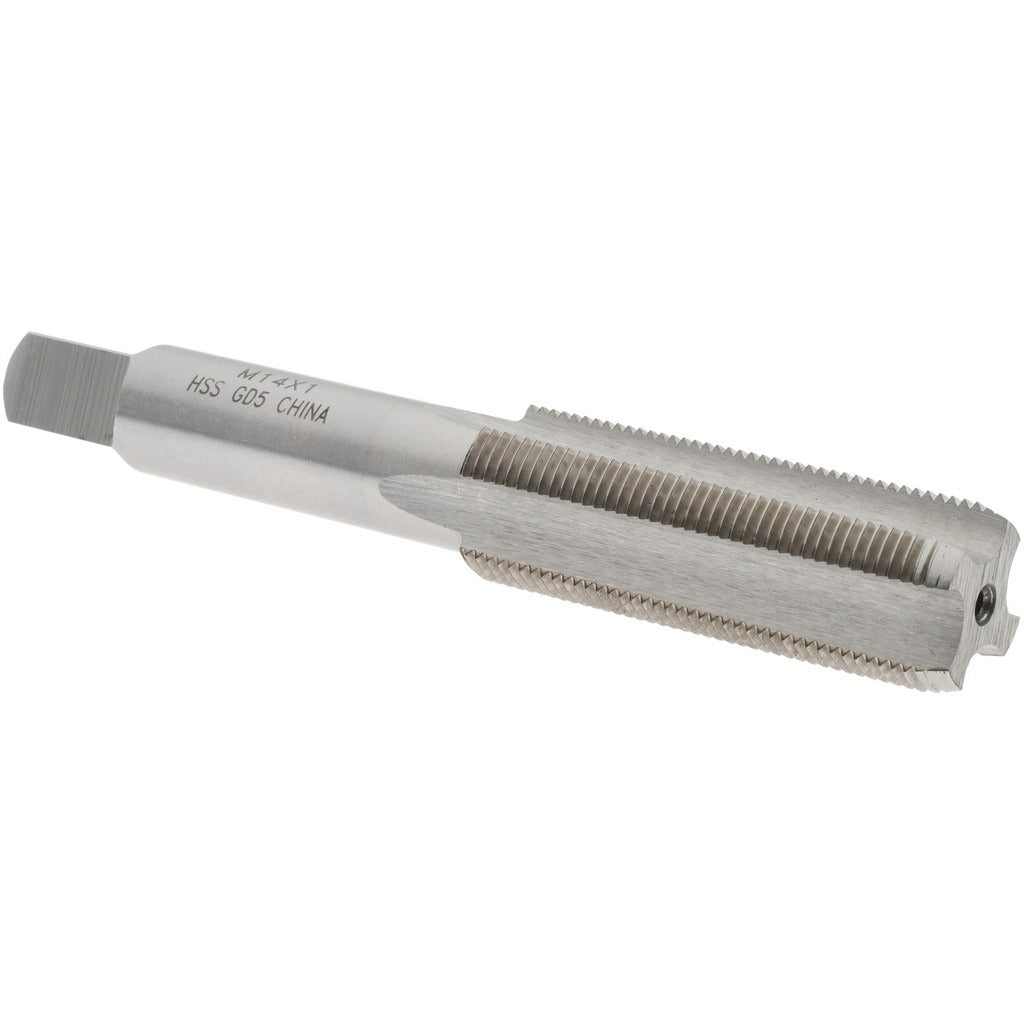

Value Collection JY9036674 M14x1 Straight Flute Tap Hss

Product Description

The VALUE COLLECTION JY9036674 is a straight flute tap designed to cut internal M14x1 metric fine threads in a variety of metalworking applications. Built from high-speed steel (HSS) with a bright, uncoated finish, this tap delivers reliable thread-cutting performance in ferrous and non-ferrous materials. It features a bottoming chamfer for threading close to the bottom of blind holes, a 6H class of fit for standard tolerance threads, and a D5 thread limit. With 4 flutes and right-hand thread direction, it is suited for use in CNC machining centers, manual mills, and drill press setups where controlled tapping is required.

This tap is used in precision machining and fabrication environments where M14x1 metric fine internal threads are required. The bottoming chamfer allows the tap to produce full threads nearly to the base of blind holes, making it a practical choice for component assemblies with shallow threaded bores. It is appropriate for use by machinists and tool-and-die professionals working on automotive, mechanical, and industrial components that specify metric fine thread engagement.

Key Features

• M14x1 metric fine thread size for fine-pitch internal threading
• Bottoming chamfer enables threading to the base of blind holes
• High-speed steel (HSS) construction for durability across a range of materials
• 4-flute design provides balanced cutting and chip management
• 6H class of fit and D5 thread limit for standard tolerance compliance
• Bright, uncoated finish suitable for general-purpose tapping applications

Compatibility

Designed as a general-purpose straight flute tap for use in standard tapping chucks and tap holders that accept the appropriate shank size, compatible with machine and hand tapping setups requiring M14x1 metric fine right-hand threads.

Installation Notes

Installation should be performed by a qualified machinist following standard tapping procedures. Ensure the workpiece is securely fixtured and the tap is properly aligned before engagement to avoid thread damage or tap breakage. Always apply appropriate cutting fluid for the material being tapped, and never force the tap against an obstruction. Reverse the tap periodically during hand tapping to break and clear chips from the flutes.
