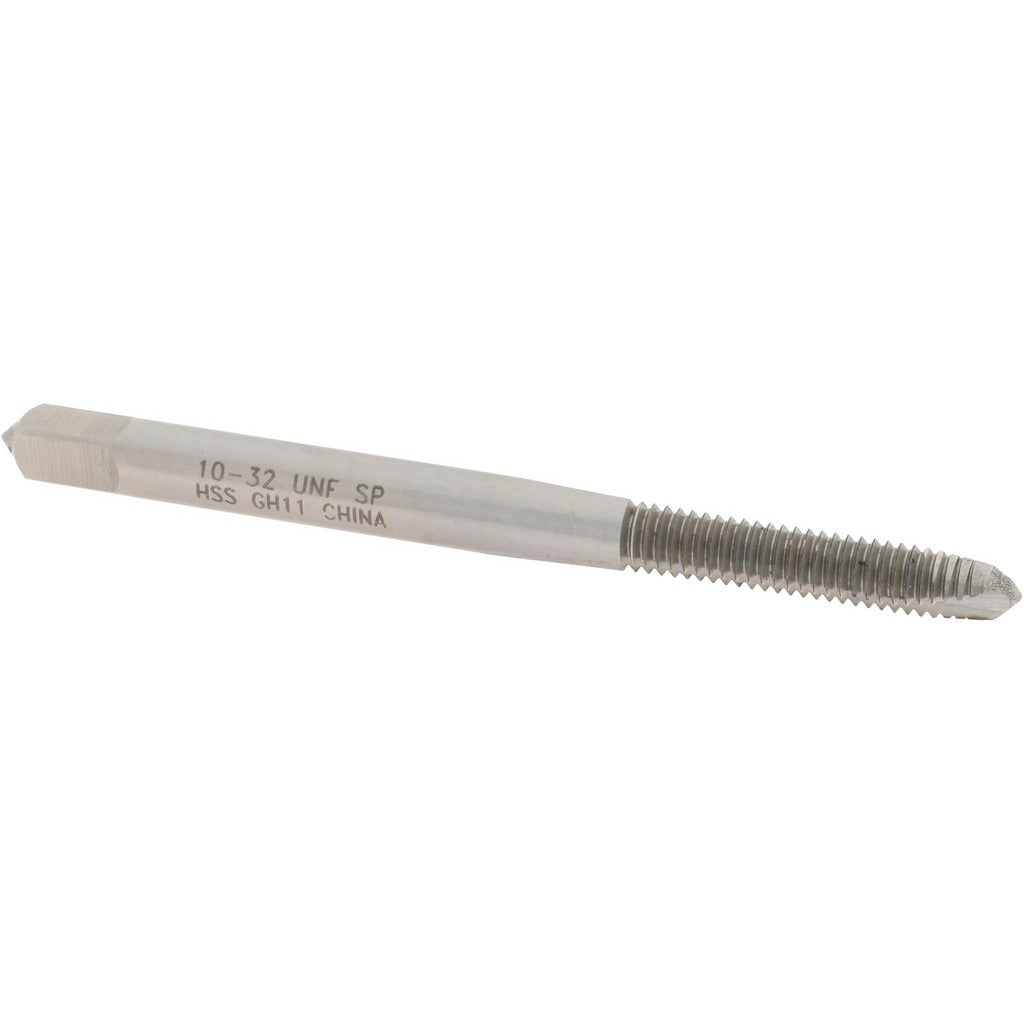

Value Collection JY8962599 Spiral Point Tap 10-32 Unf

Product Description

The VALUE COLLECTION JY8962599 is a spiral point tap designed for cutting 10-32 UNF internal threads in a wide range of materials. This 2-flute plug tap is manufactured from high speed steel (HSS) with a bright, uncoated finish. The spiral point geometry pushes chips forward ahead of the cutting zone, making it well suited for through-hole tapping applications. The H11 thread limit designates a slightly oversize cut of 0.0050 inches, which compensates for tap wear and helps achieve a consistent thread fit in production environments. Right-hand thread direction is standard. This tap is installed by machinists, maintenance technicians, and tool-room professionals working in metal fabrication, assembly, and repair operations.

This tap is used wherever 10-32 UNF threads are required in through-hole applications. Typical uses include light-gauge steel assemblies, aluminum enclosures, electrical panel fabrication, and general machine shop work. The plug chamfer provides 3 to 5 chamfered threads at the lead, balancing starting ease with thread engagement depth. It is appropriate for both hand tapping and low-speed machine tapping operations where chip ejection from the hole is needed.

Key Features

• 10-32 UNF thread form for fine-pitch fastener applications
• 2-flute spiral point design pushes chips forward through the hole
• Plug chamfer for balanced starting and thread engagement
• High speed steel construction for general-purpose tapping across common metals
• H11 thread limit with 0.0050 inch oversize for wear compensation and consistent fit
• Bright, uncoated finish suitable for use with standard tapping fluids
• Right-hand thread direction, standard orientation

Compatibility

Designed as a direct-use spiral point tap for through-hole 10-32 UNF tapping operations in hand or machine tapping setups compatible with standard straight-shank tap holders and tapping heads.

Installation Notes

This tap should be installed in a properly sized tap holder or chuck rated for the shank diameter before use. Always use an appropriate cutting fluid or tapping compound for the workpiece material to extend tap life and improve thread quality. Ensure the workpiece is securely fixtured and the tap is aligned perpendicular to the hole before engaging. For machine tapping, set spindle speed to a value appropriate for the workpiece material and tap size to avoid tap breakage.
