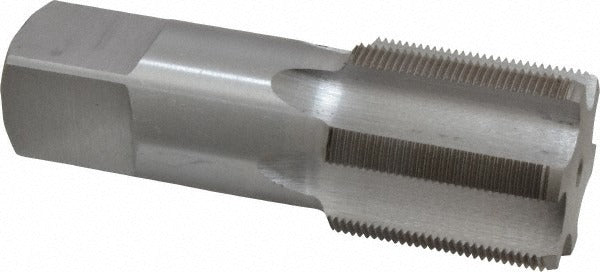

Value Collection JY4877155 Hand Tap 1-3/4-16 Uns

Product Description

The VALUE COLLECTION JY4877155 is a 1-3/4-16 UNS bottoming hand tap ground from high speed steel with a bright uncoated finish. It is designed to cut internal threads to the bottom of a blind hole, making it the final step in a standard tap sequence after taper and plug taps have been used. The H4 thread limit and 3B class of fit suit close-tolerance production work. Six straight flutes provide chip clearance and smooth cutting action on ferrous and non-ferrous materials. Overall length is 5 inches. Licensed machinists, tool and die makers, and maintenance technicians use this tap for threading operations by hand or with a tapping fixture.

This bottoming tap is suited for threading applications where the full thread depth must reach near the bottom of a blind hole. The 1-3/4-16 Unified National Special thread form is used in custom machined assemblies, heavy equipment, and hydraulic or mechanical components where a coarse standard pitch is not available in the UNC or UNF series. The straight flute configuration makes it appropriate for through-hole and short blind-hole applications in ductile and free-machining materials. A right-hand thread direction is standard for conventional fastener engagement.

Key Features

• Bottoming chamfer cuts threads to within a few pitches of the hole bottom in blind-hole applications
• H4 thread limit with 3B class of fit for close-tolerance internal threading
• Six straight flutes for balanced cutting load and chip ejection
• High speed steel construction withstands heat generated during hand and machine tapping
• Bright uncoated finish — no coating to interfere with dimensional tolerance or require stripping before regrind
• 5 inches overall length provides adequate shank for standard tap wrenches and holders

Compatibility

Designed for hand tapping or use in a tapping fixture requiring a 1-3/4-16 UNS right-hand internal thread. Fits standard square-drive tap wrenches and collet-style tapping holders sized for large-diameter taps.

Installation Notes

This tap is installed by a machinist or toolmaker using a calibrated tap wrench or tapping fixture. The workpiece should be securely clamped and the hole should be drilled to the correct tap drill diameter and deburred before threading begins. Apply appropriate cutting fluid for the workpiece material to reduce heat and extend tap life. Use in sequence after taper and plug taps when starting a new hole; advance in partial turns and reverse periodically to break chips and prevent tap breakage.
