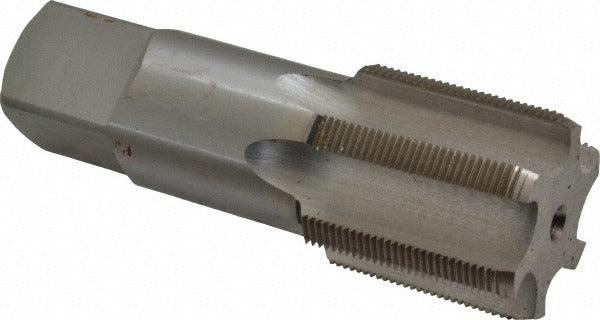

Value Collection JY4872214 Hand Tap 1-3/8-20 Uns Bottoming Hss

Product Description

The VALUE COLLECTION JY4872214 is a straight-flute hand tap designed for cutting internal threads in a 1-3/8-20 UNS thread form. Built from high speed steel (HSS) with a bright, uncoated finish, this tap offers solid wear resistance for threading operations in ferrous and non-ferrous metals. The bottoming chamfer allows threads to be cut to the bottom of a blind hole, making it the right choice when full thread depth at the base of a bore is required. At 4 inches overall length, the tap provides adequate reach for most standard hand-tapping setups. Class of fit is 3B with an H4 thread limit.

This tap is suited for machine shops, maintenance facilities, and toolrooms where UNS (Unified National Special) threads are specified. The bottoming chamfer style is commonly used as the final tap in a three-tap sequence — plug and taper taps precede it — or as the primary tap when threading through a drilled hole that must be fully threaded to depth. Right-hand threading direction is standard for conventional fastener applications. The 6-flute design distributes cutting load across more edges, which can extend tool life and improve thread finish in moderate-hardness workpieces.

Key Features

• Bottoming chamfer threads to the base of blind holes for maximum thread engagement depth
• 6-flute straight flute geometry distributes cutting load and improves thread surface finish
• High speed steel construction provides hardness and heat resistance for general metalworking applications
• Bright (uncoated) finish suitable for use with cutting fluids in ferrous and non-ferrous materials
• H4 thread limit and Class 3B fit for close-tolerance thread applications
• Right-hand thread direction for standard fastener and threaded-insert applications

Compatibility

Designed for use in any standard tap wrench or tapping fixture that accepts a 1-3/8-20 UNS bottoming tap. Intended for hand-tapping operations where UNS thread form is required per engineering specification.

Installation Notes

Installation should be performed by a machinist or qualified tradesperson familiar with hand-tapping procedures. Secure the workpiece firmly before beginning. Apply appropriate cutting fluid for the workpiece material to reduce friction and extend tap life. Back the tap off periodically to break chips and prevent binding, particularly in deeper blind holes.
