Value Collection JY4842415 Hand Tap 3/8-40 Uns Bottoming Hss

Product Description

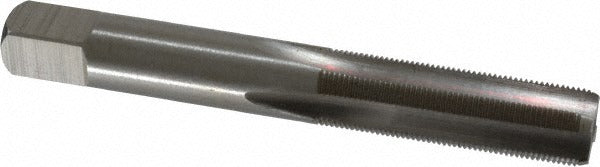

The VALUE COLLECTION JY4842415 is a 3/8-40 UNS bottoming hand tap ground from high speed steel (HSS) with a bright, uncoated finish. It cuts right-hand internal threads and features a 4-flute straight-flute geometry designed to produce threads close to the bottom of a blind hole. The bottoming chamfer engages the last one to two threads of the tap, making this tool the finishing step in a standard two- or three-tap sequence. Overall length is 2-15/16 inches. Machinists, toolmakers, and maintenance technicians use this tap for hand-tapping operations where a standard or plug tap cannot reach full thread depth.

This tap is suited for threading through and blind holes in ferrous and non-ferrous workpieces that require a 3/8-40 UNS thread form. The UNS (Unified National Special) thread standard applies where a non-standard thread pitch is specified by the design engineer or OEM print. Typical applications include precision instrument work, specialty fastener repair, and custom mechanical assemblies. The bright finish is appropriate for general-purpose hand-tapping and low-speed machine tapping in mild steels, aluminum, brass, and similar materials.

Key Features

• Bottoming chamfer allows threading to the bottom of blind holes after plug tap passes
• 4-flute straight-flute design provides stability and chip control in through and blind holes
• H2 thread limit holds close tolerances suitable for standard fit classes
• High speed steel construction withstands the heat generated in hand-tapping operations
• Bright uncoated finish — ready to use as supplied, compatible with cutting oils and tapping fluids
• Right-hand cut matches the vast majority of standard threaded fastener applications

Compatibility

Designed for use in any standard tap wrench or tapping fixture that accepts a 3/8-40 UNS bottoming tap. Intended as the final tap in a sequential tapping operation following a taper or plug tap of the same thread size and pitch.

Installation Notes

Secure the workpiece firmly before tapping and align the tap perpendicular to the drilled hole to prevent thread distortion or tap breakage. Apply a suitable cutting oil or tapping fluid throughout the operation to reduce heat and extend tap life. Advance the tap with steady pressure, backing off periodically to break chips and clear the flutes, especially in blind holes. Replacing a broken tap is a time-intensive operation, so do not force the tool past normal hand-tapping resistance.
