Value Collection JY4842217 Straight Flute Tap 3/8-20 Uns

Product Description

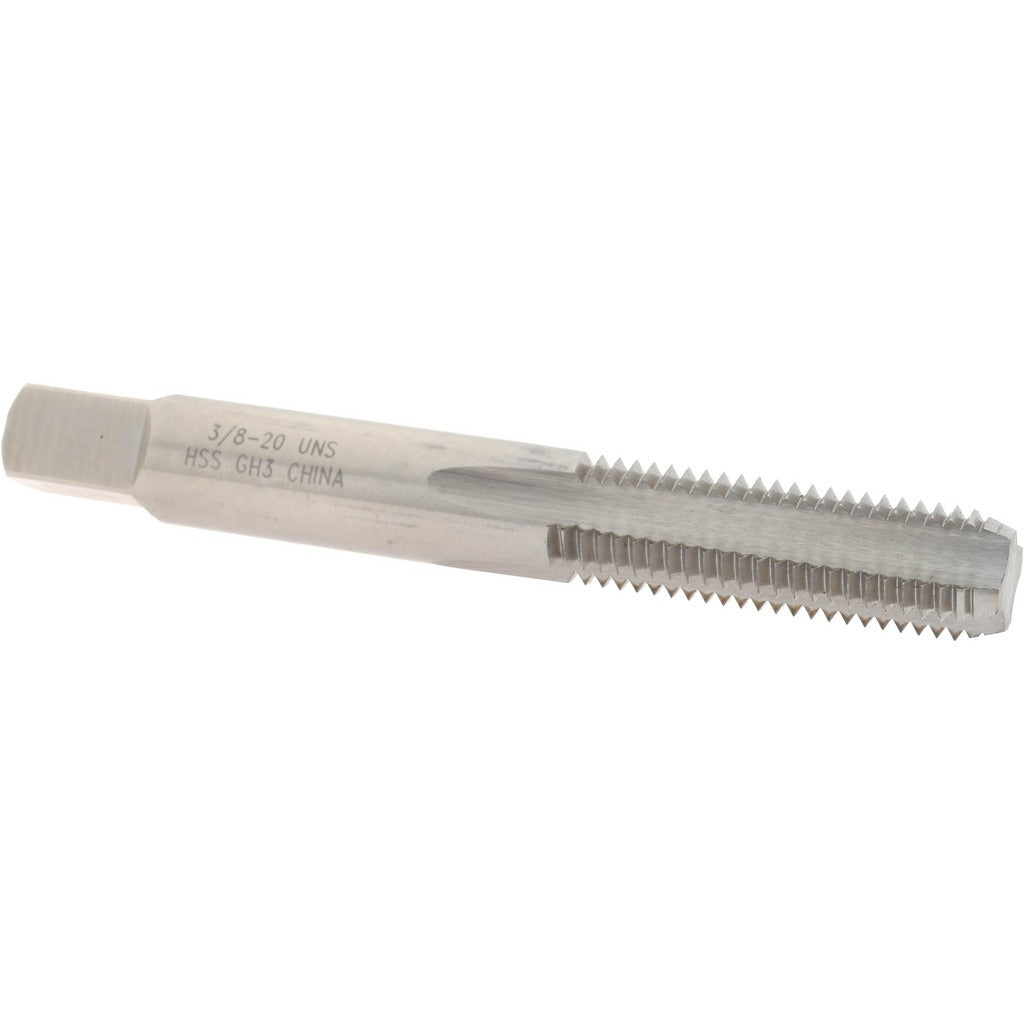

The VALUE COLLECTION JY4842217 is a straight flute tap designed to cut internal threads in pre-drilled holes. Built from high-speed steel with a bright/uncoated finish, this tap produces 3/8-20 UNS right-hand threads to a 3B class of fit with an H3 thread limit. The bottoming chamfer style allows threading close to the bottom of a blind hole, making it well suited for applications where full thread depth is required near the base of the hole. With 4 flutes, this tap provides good chip clearance and consistent thread form in a range of machinable materials. Overall length is 2-15/16 inches.

This tap is intended for use in machine shops, maintenance and repair operations, and production threading applications. The bottoming chamfer configuration is particularly useful when a through-hole tap or plug tap has already started the thread and the operator needs to extend threads to the bottom of a blind hole. It is appropriate for use in manual tapping operations as well as with tapping heads and lathes where straight flute taps are the standard choice for non-stringy materials.

Key Features

• 3/8-20 UNS thread size with right-hand thread direction
• Bottoming chamfer for threading to the base of blind holes
• 4 straight flutes for chip clearance in non-stringy materials
• 3B class of fit with H3 thread limit for consistent tolerance control
• High-speed steel construction for durability across a range of machinable materials
• Bright/uncoated finish — no coating buildup that could affect thread tolerance

Compatibility

Designed as an OEM-style replacement or standard tooling tap for applications requiring 3/8-20 UNS internal threads. Suitable for use with standard tap wrenches, T-handles, and machine tapping holders that accept the corresponding shank size.

Installation Notes

Tapping operations should be performed by a qualified machinist or maintenance technician. Ensure the workpiece is secured and the spindle or tap wrench is properly aligned before beginning to cut. Use an appropriate cutting fluid for the workpiece material to extend tap life and improve thread quality. Never force a tap that has stopped advancing — back off to clear chips and re-lubricate before continuing.
