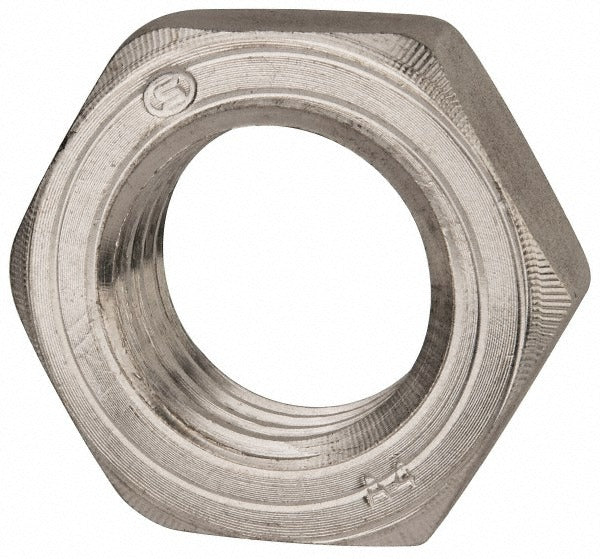

Value Collection JN9XX03600 M36 X 4 Hex Nut 316 Ss Din 439B

Product Description

The VALUE COLLECTION JN9XX03600 is a thin-profile hex nut manufactured from Grade 316 Austenitic Grade A4 stainless steel, supplied in a bright, uncoated finish. This metric fastener features an M36 x 4 thread size with a right-hand thread direction and conforms to DIN 439B standards. At 18.00 mm in height and 55.00 mm across flats, it is classified as a thin hex nut — a profile commonly used where reduced axial space is a factor. The 6H thread fit class ensures controlled dimensional tolerances appropriate for general-purpose metric fastening in industrial and structural applications. Licensed fastener technicians, millwrights, pipefitters, and maintenance professionals routinely specify this nut.

This nut is well suited for marine, chemical processing, food service, and outdoor structural environments where corrosion resistance is a priority. Grade 316 stainless steel provides superior resistance to chlorides and a broad range of corrosive media compared to Grade 304. The thin-profile DIN 439B format makes it appropriate for locknut applications and assemblies with limited clearance on large-diameter threaded rod or bolting systems.

Key Features

• M36 x 4 metric thread size with right-hand thread direction
• Thin hex nut profile per DIN 439B standard
• Grade 316 Austenitic Grade A4 stainless steel for high corrosion resistance
• 6H thread fit class for controlled dimensional tolerances
• 55.00 mm width across flats; 18.00 mm height
• Bright, uncoated finish — no coating to degrade or flake in service

Compatibility

Designed for use with M36 x 4 metric-threaded fasteners in applications requiring DIN 439B thin hex nut geometry and Grade 316 stainless steel material.

Installation Notes

Installation should be performed by qualified mechanical or maintenance trade personnel. Verify thread engagement and ensure mating bolt or stud matches the M36 x 4 metric thread specification before assembly. De-energize, depressurize, or otherwise isolate the system before fastener replacement on pressurized or energized equipment. Anti-seize compound may be appropriate when joining stainless steel fasteners to prevent galling during assembly.
