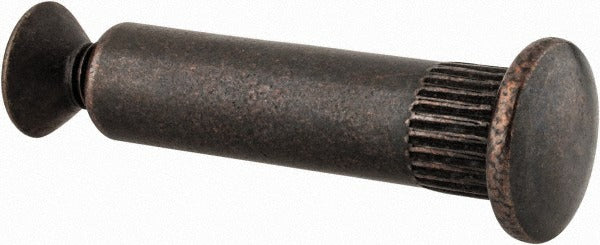

Value Collection IEH5010 Brass Sex Bolt 10-32 Flat Head

Product Description

The VALUE COLLECTION IEH5010 is a brass sex bolt binding post designed for tamper-resistant fastening applications requiring a secure, non-removable connection from one side. The flat head accepts a Phillips driver and seats flush against the mating surface, while the barrel threads onto the corresponding male screw post to clamp materials together. Finished in bronze plating over a brass base, the IEH5010 measures 1 inch overall length with a 1.19-inch barrel length and a 0.50-inch head diameter. It is threaded 10-32 UNF and weighs approximately 0.01 pounds. This fastener is typically installed by maintenance technicians, fabricators, and field service professionals working with paneling, signage, binders, or access covers.

Sex bolt binding posts like the IEH5010 are used wherever two or more layers of material must be clamped without the fastener being removable from the back side. Common applications include book binding, display panels, menu boards, license plate assemblies, leather goods, and equipment enclosures. The tamper-resistant design and bronze-plated brass construction make this post suitable for light-duty structural or cosmetic panel fastening in both indoor and light commercial environments.

Key Features

• 10-32 UNF thread standard for reliable engagement with compatible male screw posts
• Flat head profile seats flush at the surface for a clean finished appearance
• Phillips drive accepts standard Phillips screwdrivers and bits
• Brass base material offers corrosion resistance in low-moisture environments
• Bronze-plated finish provides a uniform decorative appearance
• 1.19-inch barrel length accommodates typical panel stack thicknesses

Compatibility

Designed as a standard 10-32 UNF sex bolt binding post compatible with corresponding 10-32 male screw posts. No specific model or system compatibility was provided in the product data.

Installation Notes

Installation requires no special tools beyond a standard Phillips screwdriver or bit driver. Insert the barrel through the material stack from the front, then thread the male screw post in from the back until snug. Do not overtighten, as brass fasteners can strip or deform under excessive torque. Verify that the combined material thickness falls within the usable barrel length before installation.
