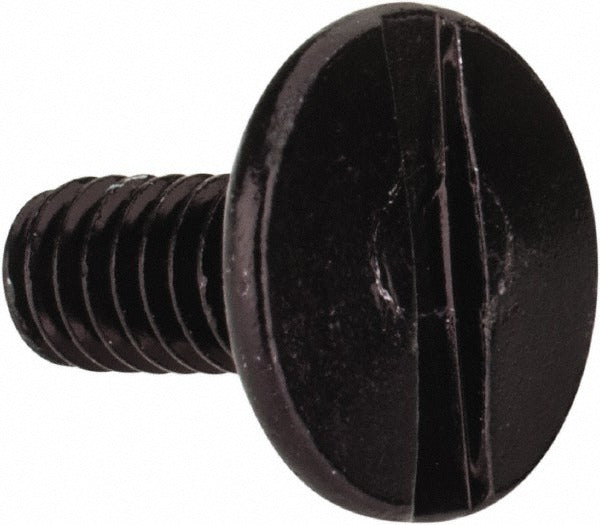

Value Collection IEH4300-BK 8-32 Aluminum Sex Bolt Binding Post

Product Description

The VALUE COLLECTION IEH4300-BK is an aluminum sex bolt binding post with a truss head and slotted drive, finished in black anodize. This type of fastener consists of a barrel-and-screw assembly used to clamp panels, straps, leather goods, or layered materials together where a flush or low-profile through-bolt is required. The 8-32 UNC thread and 0.375-inch thread length provide a secure engagement in standard-thickness assemblies. At 0.01 pounds, this is a lightweight fastener suited for applications where material weight is a consideration. Installation requires only a standard flat-blade screwdriver. Typically ordered in multiples of 10 per the stated minimum order quantity.

Sex bolt binding posts like the IEH4300-BK are commonly used in panel fabrication, electrical enclosure assembly, leather and textile work, and general-purpose fastening where a through-bolt with a finished appearance on both sides is needed. The black anodized aluminum construction resists corrosion and provides a clean finished look on exposed faces. The truss head profile spreads clamping load over a wider bearing surface compared to flat or pan head variants, making it suitable for softer or layered substrate materials.

Key Features

• 8-32 UNC thread for compatibility with standard tapped holes and mating barrels
• Truss head design distributes clamping load across a wider surface area
• Slotted drive accepts a standard flat-blade screwdriver — no special tools required
• Black anodized aluminum finish provides corrosion resistance and a clean aesthetic
• 0.375-inch thread length under head suits standard panel and strap thicknesses
• Lightweight aluminum construction at 0.01 pounds per fastener

Compatibility

Designed as a standard 8-32 UNC sex bolt binding post compatible with mating barrel nuts of corresponding thread size and head geometry in panel, strap, or layered-material fastening applications.

Installation Notes

Installation requires a flat-blade screwdriver sized to the slotted drive. The mating barrel nut should be inserted from the opposite side of the assembly before threading the screw. Do not overtighten — aluminum threads are susceptible to stripping under excessive torque. Ensure substrate thickness is within the usable thread engagement range before installation.
