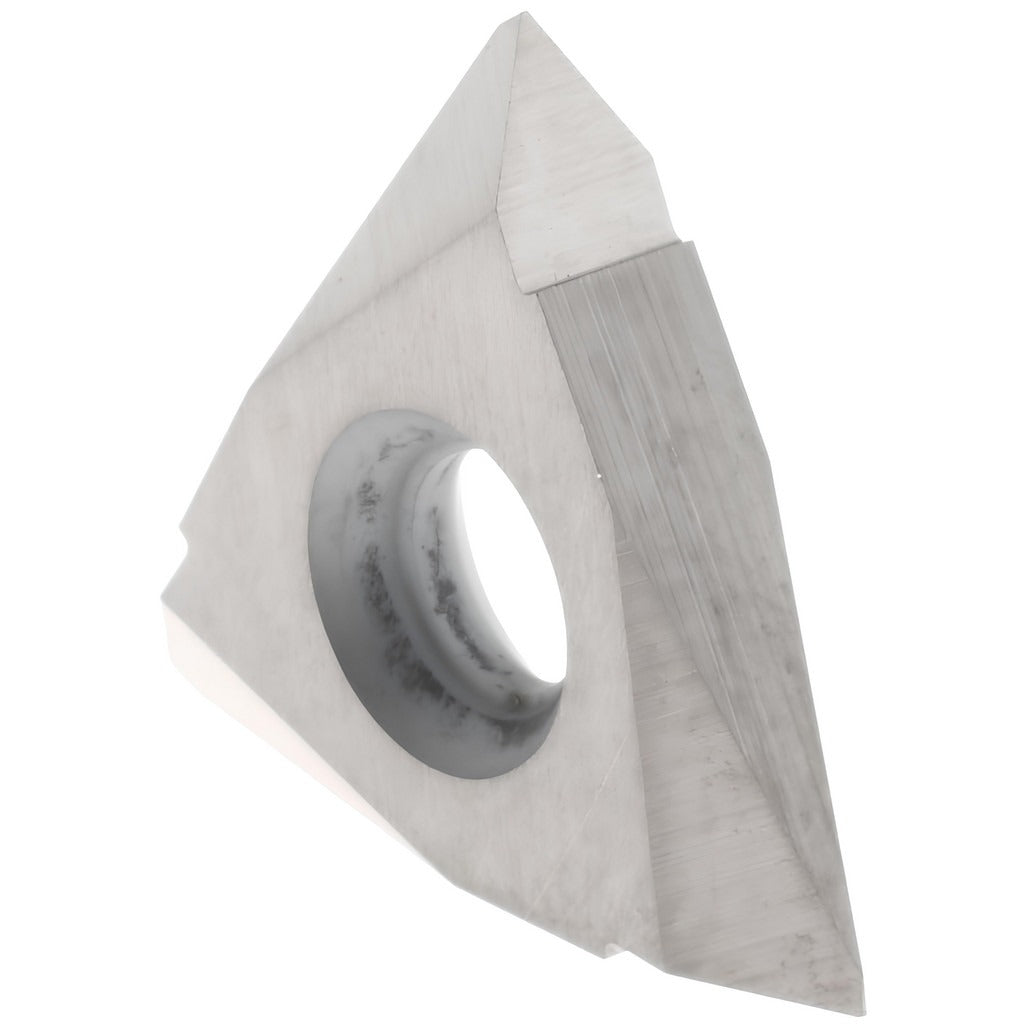

Value Collection ICT36211C Threading Insert 60V 3/8 in

Product Description

The VALUE COLLECTION ICT36211C is a solid carbide on-edge threading insert designed for 60-degree V-thread forms. Built to TPMC insert style geometry, it seats on-edge in compatible toolholders to generate precise thread profiles on lathes and turning centers. The insert measures 3/8 inch (0.3750 inch) inscribed circle with a 1/8 inch (0.1250 inch) thickness and a 0.1510 inch hole diameter. The bright, uncoated finish is suited for applications where a coating-free cutting edge is preferred, such as threading non-ferrous alloys or materials sensitive to coating adhesion. Manufactured from submicron solid carbide in grade I22, this insert delivers consistent edge integrity across threaded workpiece materials.

This insert is intended for single-point threading operations on CNC lathes and manual turning machines. It is commonly used in metalworking shops, production machining environments, and maintenance shops that cut standard 60-degree V-thread forms on external or internal features. The TPMC insert style and 3/8 inch IC make it a standard fit for a range of on-edge threading toolholders. Typical users include machinists and tool-and-die professionals working with ferrous and non-ferrous workpiece materials.

Key Features

• 60-degree V thread standard for general-purpose unified and metric-compatible thread forms
• Solid carbide construction in submicron grade I22 for consistent edge stability
• TPMC insert style with 3/8 inch inscribed circle for on-edge toolholder seating
• Bright, uncoated finish suitable for non-ferrous and coating-sensitive applications
• 0.1510 inch hole diameter and 0.1250 inch thickness for precise toolholder registration
• Sold individually; minimum order quantity is 10 pieces

Compatibility

Designed as an OEM-style replacement or standard supply insert for on-edge threading toolholders accepting TPMC-style inserts with a 3/8 inch inscribed circle.

Installation Notes

Installation is performed by qualified machinists on CNC or manual turning equipment. Power down and lock out the machine spindle before seating or replacing the insert. Use the correct torque wrench and insert screw specified by the toolholder manufacturer to secure the insert — do not overtighten by hand. Inspect the insert pocket for chips or debris before seating to ensure proper registration and prevent premature edge failure.
