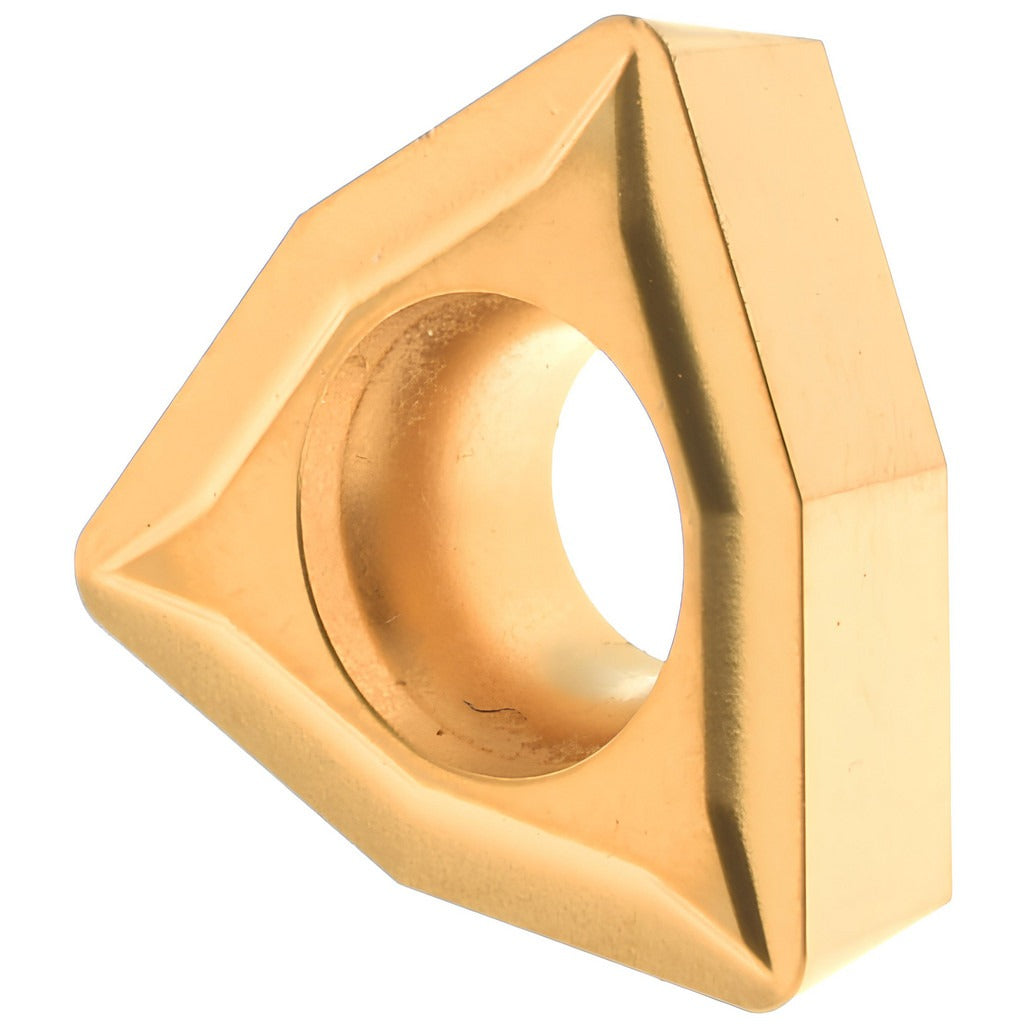

Value Collection ICP65185C Turning Insert WPMT32.52 TCN55

Product Description

The VALUE COLLECTION ICP65185C is a solid carbide turning insert designed for metal cutting operations on CNC and manual lathes. Manufactured to ANSI insert code WPMT32.52 and ISO code WPMT06T308, this insert features an 80-degree trigon (W) shape with a positive side clearance angle of 11 degrees. The substrate is solid carbide with a titanium nitride (TiN) coating applied to extend cutting edge life and reduce built-up edge on ferrous workpiece materials. The inscribed circle measures 3/8 inch (0.3750 inch) and the corner radius is 1/32 inch (0.0313 inch). It is held in the toolholder by a screw-type clamping method and is sized for standard WPMT-style insert pockets.

This insert is suited for turning, facing, and light profiling applications in a shop or production machining environment. The TCN55 grade with TiN coating targets steel (P-class) and stainless or alloy materials (M-class workpiece codes), making it a general-purpose choice for job shops running a range of ferrous materials. It is sold individually but carries a minimum order quantity of 10 pieces per order cycle.

Key Features

• Solid carbide substrate with TiN coating for extended edge life on ferrous materials
• 80-degree trigon (W) insert shape with positive 11-degree relief angle for reduced cutting forces
• Screw-type insert holding method for secure, repeatable seating in WPMT toolholders
• Corner radius of 1/32 inch (0.0313 inch) suitable for light finishing and general turning
• Chip breaker geometry (T) aids chip control during continuous turning cuts
• Conforms to ANSI WPMT32.52 and ISO WPMT06T308 standards for broad toolholder compatibility

Compatibility

Designed as a direct-fit replacement for ANSI WPMT32.52 and ISO WPMT06T308 insert pockets. Compatible with screw-clamp WPMT-style toolholders accepting a 3/8 inch inscribed circle insert with positive clearance geometry.

Installation Notes

Insert replacement should be performed with the machine in a fully stopped and locked-out state per OSHA lockout/tagout procedures. Use the appropriate torx or hex key as specified by the toolholder manufacturer to secure the clamping screw — do not overtighten, as carbide inserts are brittle and may fracture under excessive clamping force. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert. Proper insert orientation and full pocket contact are critical to dimensional accuracy and insert life.
