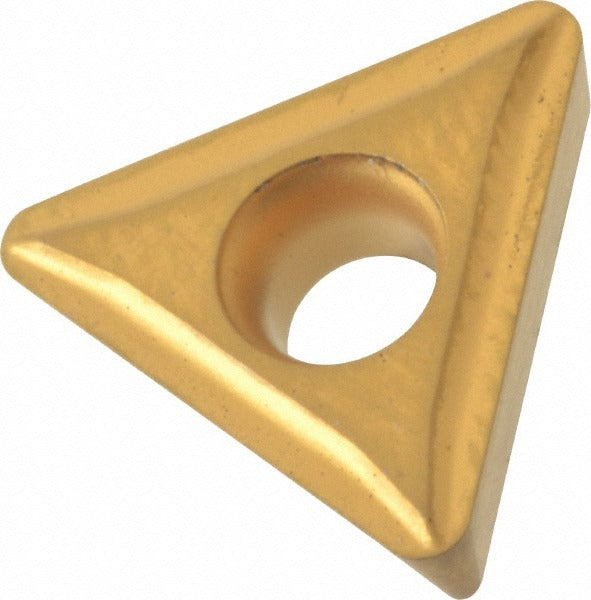

Value Collection ICP65100D Turning Insert TPMT21.52 TCN55

Product Description

The VALUE COLLECTION ICP65100D is a solid carbide turning insert designed for precision metal cutting on CNC lathes and manual turning centers. Manufactured to ANSI insert code TPMT21.52 and ISO insert code TPMT110208, this insert features a 60-degree triangular shape with a positive side clearance and an 11-degree relief angle. The TiN (titanium nitride) coating improves surface hardness and reduces friction at the cutting edge. A 1/4-inch inscribed circle and 1/32-inch corner radius make it well suited for light to medium turning passes where controlled chip formation and edge integrity are critical. It is screw-held and compatible with standard TPMT-style toolholders.

This insert is intended for turning operations on steel and stainless steel workpiece materials, corresponding to primary workpiece material codes M and P. Typical applications include finishing and semi-finishing passes on shafts, flanges, and similar turned components in job shop, production machining, and maintenance repair environments. Machinists and CNC operators working with ferrous metals will find the TCN55 grade and TiN coating effective for consistent tool life at moderate cutting speeds. Sold individually; minimum order quantity is 10 units.

Key Features

• Solid carbide construction with TiN coating for improved wear resistance
• ANSI code TPMT21.52 and ISO code TPMT110208 for broad toolholder compatibility
• 60-degree triangular insert shape with positive side clearance
• 1/32-inch corner radius suited for semi-finish and finish turning
• Screw-held retention method for secure, repeatable seating in TPMT holders
• Material grade C5 with chip breaker designation T for controlled chip evacuation

Compatibility

Designed as an OEM-style replacement and standard fit for TPMT-style screw-clamp toolholders accepting a triangular insert with a 1/4-inch inscribed circle and 0.110-inch hole diameter.

Installation Notes

Insert replacement should be performed by a qualified machinist with the machine fully powered down and the spindle locked. Use the appropriate torx or hex key to seat the clamping screw to the toolholder manufacturer's specification without overtightening. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert. Index or replace the insert at the first sign of edge chipping or surface finish degradation to avoid workpiece damage.
