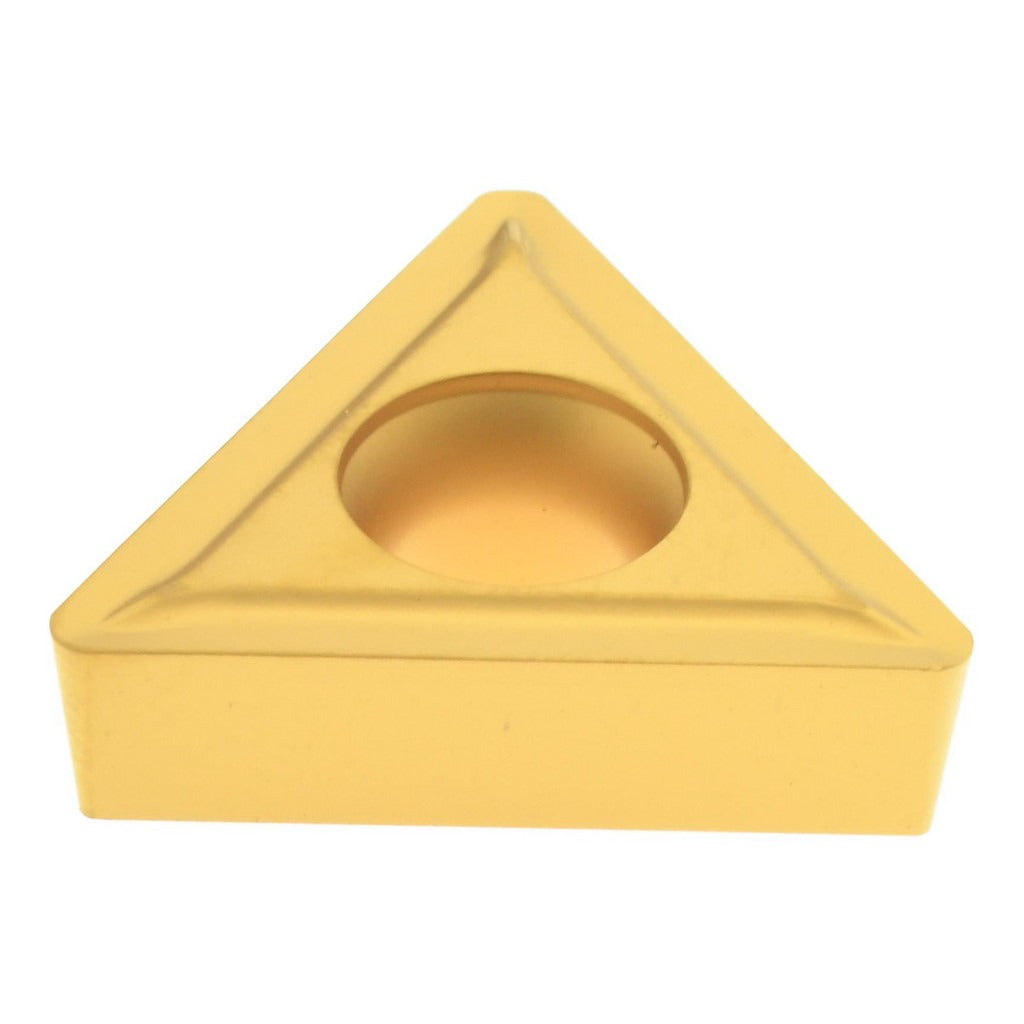

Value Collection ICP65065H Turning Insert TCMT32.52 TCN55

Product Description

The VALUE COLLECTION ICP65065H is a solid carbide turning insert designed for precision metal turning operations on CNC lathes and manual turning centers. Manufactured to ANSI insert code TCMT32.52 and ISO insert code TCMT16T308, this insert features a 60-degree triangular shape with a positive side clearance and a TiN (titanium nitride) coating that extends cutting edge life and reduces built-up edge. With an inscribed circle of 0.375 inches and a corner radius of 0.0313 inches, it delivers controlled chip formation and consistent surface finishes. It is held in place via a screw-clamp toolholder. Licensed machinists and CNC operators install this insert as a standard consumable in turning tooling setups.

This insert is suited for turning operations on steel and stainless steel workpiece materials, consistent with primary workpiece material codes M and P. The TCMT style, positive clearance geometry, and TCN55 grade make it appropriate for medium-duty finishing and light roughing passes on ferrous materials. The T chip breaker configuration helps manage chip control across a range of feed rates and depths of cut. Sold individually per package, with a minimum order quantity of 10 units.

Key Features

• Solid carbide substrate with TiN coating for extended tool life on ferrous materials
• 60-degree triangular insert shape (TCMT style) with positive side clearance for reduced cutting forces
• Inscribed circle of 0.375 inches and insert thickness of 0.1563 inches for dimensional consistency
• Corner radius of 0.0313 inches suitable for controlled finishing passes
• Screw-clamp holding method for secure, repeatable seating in compatible toolholders
• T chip breaker geometry for effective chip control across medium feed and depth-of-cut ranges

Compatibility

Designed as an OEM-style replacement or standard consumable for screw-clamp TCMT-style turning toolholders accepting ANSI size code 32.52 inserts with a 0.173-inch hole diameter.

Installation Notes

This insert is installed and replaced by machinists or CNC tooling technicians. Power down and lock out the machine before indexing or replacing inserts. Use the appropriate torx or hex key to secure the clamping screw to the toolholder manufacturer's specified method without overtightening. Inspect the toolholder pocket for wear or debris before seating the new insert.
