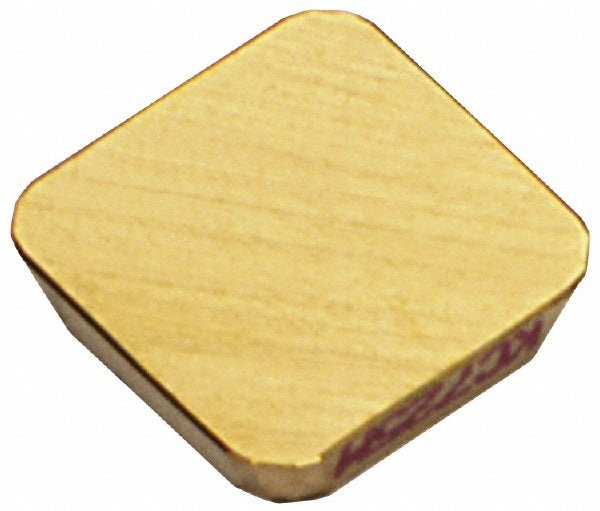

Value Collection ICP10090M Milling Insert SEKN1204AFTN

Product Description

The VALUE COLLECTION ICP10090M is a solid carbide milling insert designed for use in indexable milling toolholders. Conforming to the SEKN1204AFTN ISO designation, this insert features a square shape with a 90-degree included angle and a neutral hand orientation. The TiN (titanium nitride) coating improves surface hardness and wear resistance, extending tool life in a range of cutting applications. At 3/16 inches thick with a 1/2-inch inscribed circle, the insert meets standard SEKN-style geometry requirements and is suited for machinists and toolroom technicians working with indexable milling setups.

This insert is appropriate for milling operations on ferrous and non-ferrous materials in machine shop and manufacturing environments. The ICP55M manufacturer grade and C5 material grade classification place it in a versatile range for general-purpose milling. The 20-degree relief angle reduces cutting forces and supports clean chip evacuation. Neutral hand configuration makes it compatible with toolholders that accept SEKN-profile inserts without a specific left- or right-hand requirement. Sold individually per package, with a minimum order quantity of 10 units.

Key Features

• Solid carbide construction with TiN coating for enhanced wear resistance
• Square insert shape with 90-degree included angle per SEKN geometry
• 20-degree relief angle for reduced cutting forces and improved chip flow
• Neutral hand orientation for broad toolholder compatibility
• ICP55M manufacturer grade, C5 material grade for general-purpose milling
• ISO code SEKN1204AFTN for precise toolholder matching

Compatibility

Designed for use in indexable milling toolholders that accept SEKN-style square inserts with a 1/2-inch inscribed circle and 3/16-inch thickness per the SEKN1204AFTN ISO designation.

Installation Notes

Installation is performed by machining technicians using the appropriate torx or hex key for the toolholder clamp screw. Ensure the machine spindle is fully stopped and locked out before indexing or replacing inserts. Seat the insert firmly against the pocket locating surfaces before tightening the clamping screw. Inspect the insert pocket for chips or debris prior to seating a new insert to avoid seating errors.
