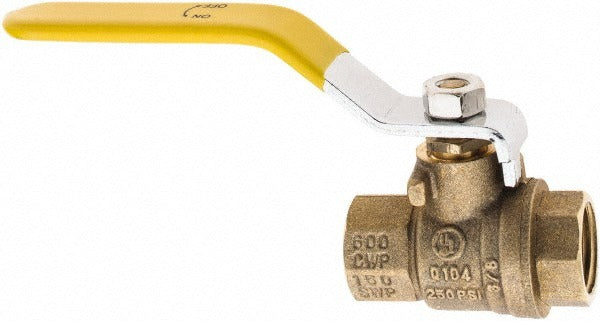

Value Collection HP-Q104 3/8 Inch Full Port Ball Valve Npt

Product Description

The VALUE COLLECTION HP-Q104 3/8" is a full port, two-piece manual ball valve designed for fluid shut-off and flow control in plumbing and mechanical piping systems. The full port design maintains full pipe bore diameter through the valve body, minimizing pressure drop across the valve. The body is constructed from brass with a reinforced PTFE (Teflon) seat for chemical resistance and long service life. A lever handle allows for quick quarter-turn operation, making open and closed positions immediately visible. This valve is installed by licensed plumbers and pipefitters in both residential and light commercial applications.

This valve is suited for use in water supply lines, HVAC hydronic systems, compressed air lines, and other fluid handling applications where a reliable manual shutoff is required. The 3/8 inch NPT end connections allow for straightforward threaded installation into standard pipe assemblies. Its compact two-piece brass body fits in tight spaces where larger valves would not be practical.

Key Features

• Full port bore maintains maximum flow capacity and minimizes pressure drop
• Two-piece brass body provides corrosion resistance and durability
• Reinforced PTFE seat material offers chemical resistance and a positive seal
• Lever handle allows quarter-turn operation with clear open/closed indication
• 3/8 inch NPT end connections for standard threaded pipe assembly

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for 3/8 inch NPT threaded pipe systems in residential and light commercial plumbing and HVAC hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with local plumbing codes and the IPC. Always depressurize and drain the system before removing or installing any valve. Apply appropriate thread sealant or PTFE tape to NPT threads before assembly. Do not over-torque the threaded connections, as this can crack the valve body or distort the seat.
