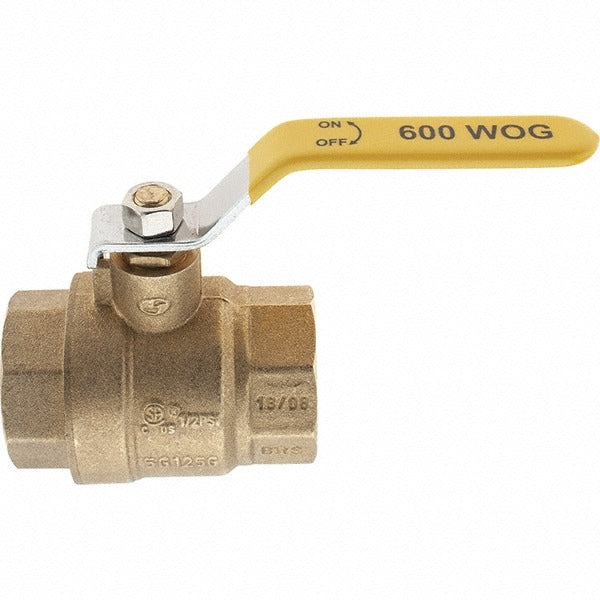

Value Collection HP-Q104 1-1/4 Inch Npt Brass Ball Valve

Product Description

The VALUE COLLECTION HP-Q104 1-1/4"H is a full port, two-piece manual ball valve designed for positive on/off flow control in plumbing, HVAC, and mechanical piping systems. Built with a brass body and reinforced Teflon seat, this valve handles the demands of commercial and residential installations where reliable shutoff and low pressure drop are required. The lever handle allows for quick quarter-turn actuation, making it easy to identify open or closed position at a glance. Licensed plumbers and mechanical contractors are the primary installers for this valve type in hydronic, potable water, and general-purpose piping applications.

This valve is suited for 1-1/4 inch NPT threaded pipe connections in a wide range of fluid handling systems, including domestic water supply, hydronic heating loops, and light industrial process piping. The full port design maintains bore diameter equal to pipe ID, minimizing flow restriction and pressure drop across the valve body. The two-piece brass body construction allows for ease of installation in tight or retrofit locations.

Key Features

• Full port bore maintains full pipe flow with minimal pressure drop
• Brass body for corrosion resistance in water and general-purpose fluid service
• Reinforced Teflon seat provides durable, low-friction sealing
• NPT end connections for standard threaded pipe installation
• Lever handle for quick quarter-turn open/close operation
• Two-piece body construction for straightforward installation and serviceability

Compatibility

Designed as an OEM-style replacement or new-installation valve for 1-1/4 inch NPT threaded piping systems in residential and commercial plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable local codes and the IPC. Shut off and depressurize the system and drain the line before removing or installing any valve. Apply thread sealant or PTFE tape to NPT threads before assembly and verify leak-free connection before returning the system to service. Do not exceed the rated pressure and temperature limits of the valve for the intended service fluid.
