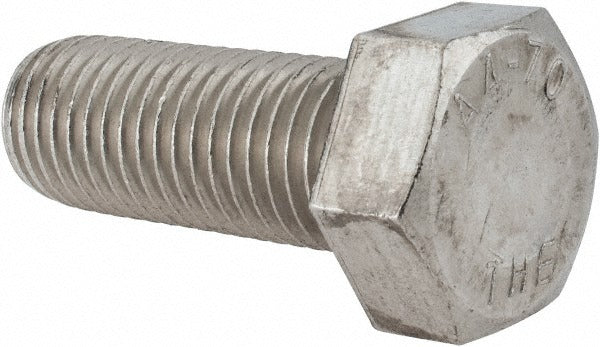

Value Collection HC3XX24060-001BX M24 Hex Cap Screw

Product Description

The VALUE COLLECTION HC3XX24060-001BX is a metric hex head cap screw manufactured from Grade 316 austenitic stainless steel (A4 grade) with a bright, uncoated finish. It carries an M24 x 3.00 thread profile, measures 60 mm under the head, and is fully threaded along its entire length. The 36 mm hex drive is compatible with standard hex wrenches and impact sockets. This fastener conforms to DIN 933 and is suited for structural, mechanical, and process-equipment assembly where corrosion resistance and dimensional consistency are required. Licensed electricians, plumbers, pipefitters, and mechanical contractors commonly specify A4-316 hardware in corrosive or wet environments.

This screw is appropriate for use in marine, chemical processing, food service, HVAC equipment frames, pump assemblies, and piping support structures. The 316 stainless alloy provides superior resistance to chloride-induced corrosion compared to 304-series hardware, making it a reliable choice for coastal installations, pool mechanical rooms, and outdoor equipment mounting where hardware longevity is critical. It ships individually and can be ordered in single-unit quantities.

Key Features

• Grade 316 austenitic stainless steel (A4) for strong chloride and corrosion resistance
• Fully threaded M24 x 3.00 shank, 60 mm length under head
• 36 mm hex drive fits standard wrenches and impact sockets
• Bright, uncoated finish - no plating to chip or delaminate
• Conforms to DIN 933 dimensional standard
• Metric thread standard for use with metric-spec assemblies

Compatibility

Designed as a DIN 933 compliant M24 x 3.00 fully threaded hex head cap screw suitable for metric-threaded assemblies requiring Grade 316 stainless steel fasteners.

Installation Notes

Installation should be performed by a qualified mechanic, pipefitter, or contractor familiar with metric fastener specifications and torque requirements for the specific assembly. Always verify that mating threaded components share the same M24 x 3.00 thread standard before assembly. Avoid mixing stainless steel fasteners with dissimilar metals in submerged or high-moisture applications where galvanic corrosion could be a concern. Apply an appropriate anti-seize compound if the fastener will be installed in high-temperature or marine environments to prevent galling of the stainless threads.
