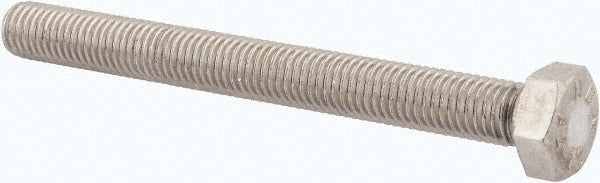

Value Collection HC3XX12120-010BX M12x1.75 Hex Cap Screw 316 Ss

Product Description

The VALUE COLLECTION HC3XX12120-010BX is a fully threaded hex head cap screw manufactured from Grade 316 austenitic stainless steel, Metric Grade A4. The fastener measures M12 x 1.75 thread pitch with a 120 mm length under the head and a 19 mm hex drive. Grade 316 stainless steel provides strong resistance to corrosion and oxidation, making it well suited for wet, chemical-exposure, and marine-adjacent environments. This screw carries a bright, uncoated finish and conforms to DIN 933, EN 24017, and ISO 4017 dimensional standards. Mechanics, pipefitters, millwrights, and maintenance technicians working with metric-spec equipment are the primary installers.

This fastener is used across a wide range of commercial and industrial applications where metric threading and stainless steel corrosion resistance are required. Typical installations include HVAC equipment frames, pipe hangers, pump housings, pool and water-treatment equipment, and structural assemblies exposed to moisture or mild chemicals. The fully threaded shank allows engagement along the full bolt length, which is useful when joining thinner materials or when adjustment of clamping position is needed during assembly.

Key Features

• Grade 316 austenitic stainless steel, Metric Grade A4, for superior corrosion resistance
• Fully threaded shank — M12 x 1.75 thread pitch, 120 mm length under head
• 19 mm hex drive for standard metric wrench engagement
• Bright, uncoated finish — no coating to flake, chip, or react with process fluids
• Conforms to DIN 933, EN 24017, and ISO 4017 dimensional standards

Compatibility

Designed for use in any application requiring a metric M12 x 1.75 fully threaded hex head cap screw in Grade 316 stainless steel per DIN 933, EN 24017, and ISO 4017 standards.

Installation Notes

Installation should be performed by a qualified mechanic, pipefitter, or maintenance technician familiar with metric fastener specifications. Inspect mating threaded holes or nuts to confirm M12 x 1.75 thread pitch before installation. Use a calibrated torque wrench and follow the equipment manufacturer's torque specifications for M12 fasteners in the applicable material. Avoid mixing stainless steel fasteners with dissimilar metals in submerged or chemically active environments to minimize galvanic corrosion risk.
