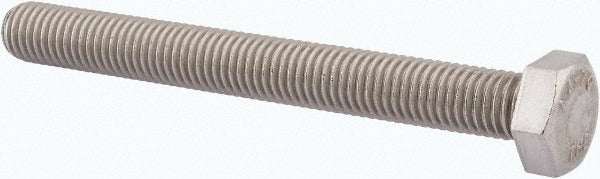

Value Collection HC3XX12110-010BX M12 Hex Cap Screw 316 Ss

Product Description

The VALUE COLLECTION HC3XX12110-010BX is a fully threaded hex head cap screw designed for metric fastening applications requiring corrosion-resistant hardware. Manufactured from Grade 316 austenitic stainless steel (Grade A4), this fastener offers strong resistance to chlorides, acids, and marine environments. It measures M12 x 1.75 thread pitch with a 110 mm length under head and uses a 19 mm hex drive. Conforming to DIN 933, EN 24017, and ISO 4017 standards, it is appropriate for structural, mechanical, and process-industry connections where material integrity and dimensional accuracy are required.

This screw is suited for use in marine, chemical processing, food service, and outdoor industrial environments where standard carbon steel fasteners would be vulnerable to corrosion. The fully threaded shank provides maximum thread engagement across the clamped length, making it a common choice for through-bolt applications and machine assemblies. Mechanical contractors, pipefitters, millwrights, and marine service technicians are the typical installers of this fastener type.

Key Features

• Grade 316 austenitic stainless steel (A4) for superior corrosion resistance in harsh or wet environments
• Fully threaded shank maximizes thread engagement for secure clamping
• Bright uncoated finish — no added coating to affect thread tolerances or dimensional fit
• Conforms to DIN 933, EN 24017, and ISO 4017 international fastener standards
• 19 mm hex drive compatible with standard metric wrenches and sockets

Compatibility

Designed as a standard metric hex head cap screw for use in any application requiring an M12 x 1.75 fully threaded fastener to DIN 933, EN 24017, or ISO 4017 specifications.

Installation Notes

Installation should be performed by a qualified mechanic, millwright, or tradesperson familiar with metric fastener specifications and proper torque procedures. Always confirm thread engagement depth and mating material compatibility before installation. Use calibrated torque equipment and follow the applicable equipment manufacturer or engineering specification for final torque values. Do not mix stainless steel fasteners with dissimilar metals in environments where galvanic corrosion may occur without appropriate isolation measures.
