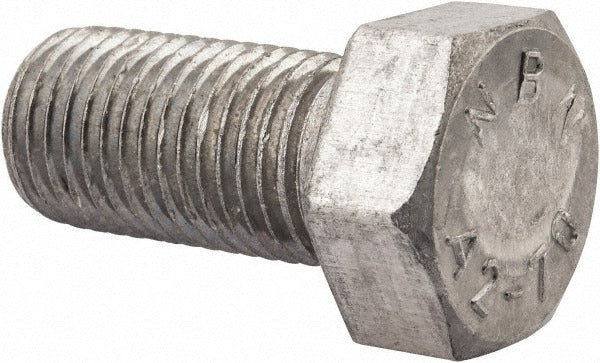

Value Collection HC3X22045 Hex Cap Screw M22 Stainless

Product Description

The VALUE COLLECTION HC3X22045 is a fully threaded hex head cap screw in M22 x 2.50 thread size with a 45 mm length under head. Manufactured from 18-8 austenitic stainless steel to Grade A2 specification, this fastener delivers strong corrosion resistance suitable for wet, outdoor, and chemically exposed environments. The bright, uncoated finish maintains dimensional accuracy and allows direct inspection of the base material. A 34 mm hex drive makes it compatible with standard metric wrenches and sockets. This screw is built to DIN 933, EN 24017, and ISO 4017 standards, making it a reliable choice for metric fastening applications across industrial and mechanical assemblies.

This fastener is used in general industrial, mechanical, and structural assembly applications where metric threading and corrosion resistance are required. The fully threaded shank provides maximum thread engagement across the entire fastened length, making it well suited for through-bolt installations in flanges, equipment frames, pump housings, and similar assemblies. Machinists, millwrights, pipefitters, and maintenance technicians regularly use this fastener type in both light commercial and heavy industrial settings.

Key Features

• M22 x 2.50 metric thread with 45 mm length under head for precise fitment in standard metric applications
• Fully threaded shank per DIN 933, EN 24017, and ISO 4017 for maximum thread engagement
• 18-8 austenitic stainless steel, Grade A2, for strong resistance to rust and corrosion
• Bright, uncoated finish preserves dimensional tolerance and allows visual material verification
• 34 mm hex drive compatible with standard metric wrenches and sockets

Compatibility

Designed as a standard metric hex head cap screw conforming to DIN 933, EN 24017, and ISO 4017. Fits any application calling for an M22 x 2.50 fully threaded hex cap screw in 18-8 stainless steel.

Installation Notes

Installation should be performed by a qualified mechanic or millwright using a calibrated torque wrench and a 34 mm metric socket or open-end wrench. Inspect mating threads for damage or contamination before assembly. When installing stainless steel fasteners, apply an appropriate anti-seize compound to reduce the risk of galling during torquing. Power down and de-energize any equipment before performing fastener service on live machinery.
