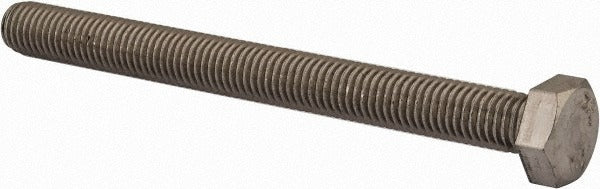

Value Collection HC3X12130-010BX M12 Hex Cap Screw Din 933

Product Description

The VALUE COLLECTION HC3X12130-010BX is a fully threaded hex head cap screw in the metric M12 x 1.75 thread size with a 130 mm length under head. Manufactured from 18-8 austenitic stainless steel to Grade A2, this fastener delivers solid corrosion resistance in wet, chemical-exposure, and outdoor service environments. The bright, uncoated finish maintains the base material properties without additional surface treatment. With a 19 mm hex drive, it accepts standard metric wrenches and sockets. It meets DIN 933 dimensional standards, making it a straightforward drop-in specification for assemblies that call out that norm. Installers in HVAC, plumbing, and general mechanical trades use this screw wherever a metric stainless fastener is required.

This fastener is suited for residential and light commercial mechanical assemblies, equipment mounting, and structural connections where corrosion resistance is a design requirement. The M12 x 1.75 thread pitch and 130 mm shank length make it common in equipment frames, pipe supports, fan assemblies, and panel mounting applications. Because it is fully threaded, it can engage the full depth of any threaded hole or nut along its entire shank, giving flexibility in stack-up applications.

Key Features

• M12 x 1.75 metric thread, fully threaded along the 130 mm shank length
• 18-8 austenitic stainless steel, Grade A2, for corrosion resistance in wet and outdoor environments
• Bright, uncoated finish — no secondary coating to degrade or affect dimensional tolerances
• 19 mm hex drive accepts standard metric wrenches and sockets
• Conforms to DIN 933 dimensional standard

Compatibility

Designed as a standard DIN 933 fully threaded metric hex head cap screw suitable for use with any M12 x 1.75 threaded hole or matching hex nut in metric mechanical assemblies.

Installation Notes

Installation is performed by licensed mechanics, HVAC technicians, or plumbers depending on the application. Power down or de-energize any equipment before accessing fastened assemblies. Use a properly sized 19 mm metric wrench or socket to avoid rounding the hex. Do not mix with inch-standard fasteners or thread-tap metric holes with improper tooling, as cross-threading will compromise the joint.
