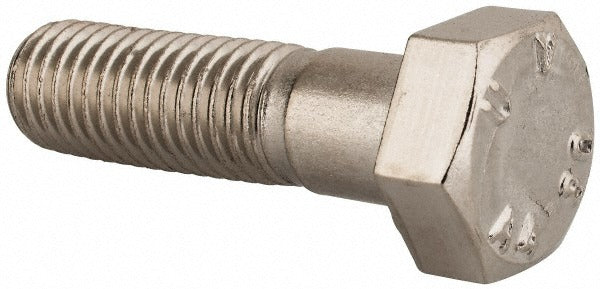

Value Collection HC1XX14050-001BX M14 Hex Head Cap Screw

Product Description

The VALUE COLLECTION HC1XX14050-001BX is a metric hex head cap screw manufactured from Grade 316 austenitic stainless steel, classified as Grade A4 under the DIN standard. It features an M14 x 2.00 thread profile with a 50 mm length under the head and a 22 mm hex drive. The shank is partially threaded in accordance with DIN 931, making it suited for applications requiring a bearing surface against the material being fastened. This fastener is supplied in a bright, uncoated finish and is installed by mechanical, maintenance, and industrial technicians across a range of structural and equipment assembly tasks.

This cap screw is commonly used in marine, chemical processing, food service, and outdoor structural applications where corrosion resistance is a primary requirement. Grade 316 stainless steel provides elevated resistance to chlorides and pitting compared to Grade 304, making it appropriate for wet or chemically aggressive environments. It is used in equipment framing, piping supports, pump mounting, and similar bolted assemblies where a metric fastener with a standard hex drive is specified.

Key Features

• M14 x 2.00 metric thread size with 50 mm length under head
• Grade 316 austenitic stainless steel, Grade A4 classification per DIN standards
• Partially threaded shank per DIN 931 for clamping and load-bearing applications
• 22 mm hex drive compatible with standard metric wrenches and sockets
• Bright uncoated finish with no additional surface treatment
• Corrosion-resistant construction suited for marine and chemical environments

Compatibility

Designed as a DIN 931 partially threaded metric hex cap screw for use in any application specifying an M14 x 2.00 x 50 mm fastener in Grade 316 or Grade A4 stainless steel.

Installation Notes

Install using a standard 22 mm metric wrench or socket. Ensure mating threads are clean and free of debris before driving the fastener. When fastening stainless steel to stainless steel components, apply an anti-seize compound to prevent galling during installation. Follow the applicable mechanical or structural specification for the required clamp load and tightening sequence.
