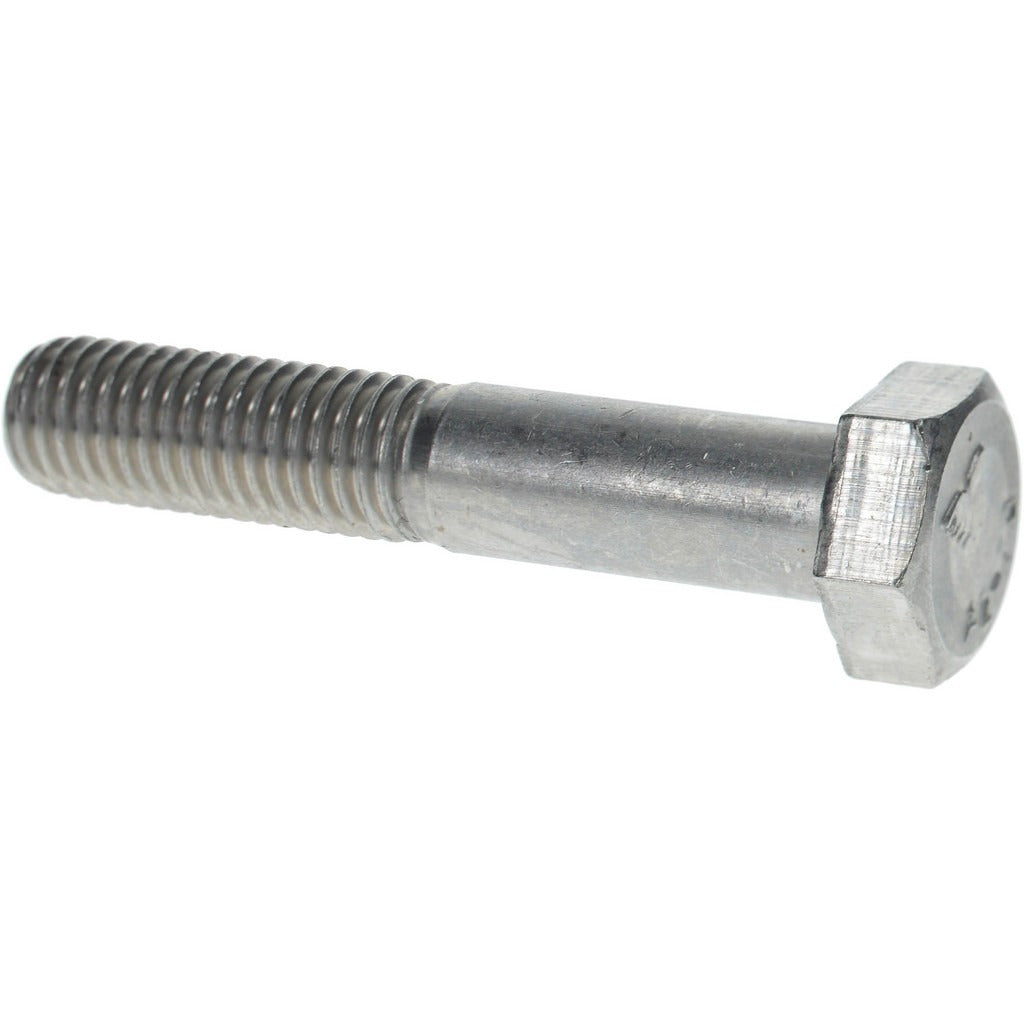

Value Collection HC1X14075 M14x2 Hex Cap Screw Ss

Product Description

The VALUE COLLECTION HC1X14075 is a metric hex head cap screw designed for general mechanical and structural fastening applications. Manufactured from 18-8 austenitic stainless steel to Grade A2, this fastener delivers solid corrosion resistance without a surface coating. It features a partially threaded shank, an M14 x 2.00 mm thread form, and a 75 mm length measured under the head. The 22 mm hex drive allows installation with standard open-end, box, or socket wrenches. This screw follows DIN 931, EN 24014, and ISO 4014 dimensional standards, making it a direct fit wherever those specifications are called out on engineering drawings or maintenance documentation.

This fastener is suited for metric-threaded assemblies in industrial, commercial, and trade service environments. Common applications include equipment frames, pump housings, pipe flanges, HVAC structural supports, and general machinery where corrosion resistance is required. The partial threading allows the unthreaded shank to bear shear loads when the bolt passes through a clearance hole before engaging a threaded bore or nut. Installers working in wet, chemical-exposure, or outdoor environments frequently specify 18-8 stainless fasteners to avoid rust and galvanic issues associated with plated carbon steel alternatives.

Key Features

• M14 x 2.00 mm metric thread, 75 mm length under head
• 18-8 austenitic stainless steel, Grade A2 — corrosion-resistant and non-magnetic in most conditions
• Partially threaded shank per DIN 931, EN 24014, and ISO 4014 standards
• Bright uncoated finish — no coating delamination risk in high-torque applications
• 22 mm hex drive — compatible with standard metric wrenches and sockets

Compatibility

Designed as a standard metric hex head cap screw conforming to DIN 931, EN 24014, and ISO 4014, suitable for any application calling out an M14 x 2.00 partially threaded fastener in those specifications.

Installation Notes

Installation is performed with a 22 mm open-end, combination, or socket wrench. De-energize and lock out any equipment before fastener replacement or assembly work in live systems. Apply an appropriate anti-seize compound when joining stainless to stainless to prevent galling during torquing. Follow the torque specifications provided in the equipment manufacturer documentation or applicable standard for Grade A2 M14 fasteners — do not exceed those values.
